SELECTING THE DISPLAY MODE
The Network QUAD unit has two operating modes. The
correct mode must be selected for your Network system to
operate properly.
tYPEt
Transducer mode, the unit uses and displays
speed and depth data from sensors connected
directly into the display unit.
tYPEr
Repeater mode, the unit operates as a repeater
using data from the system network.

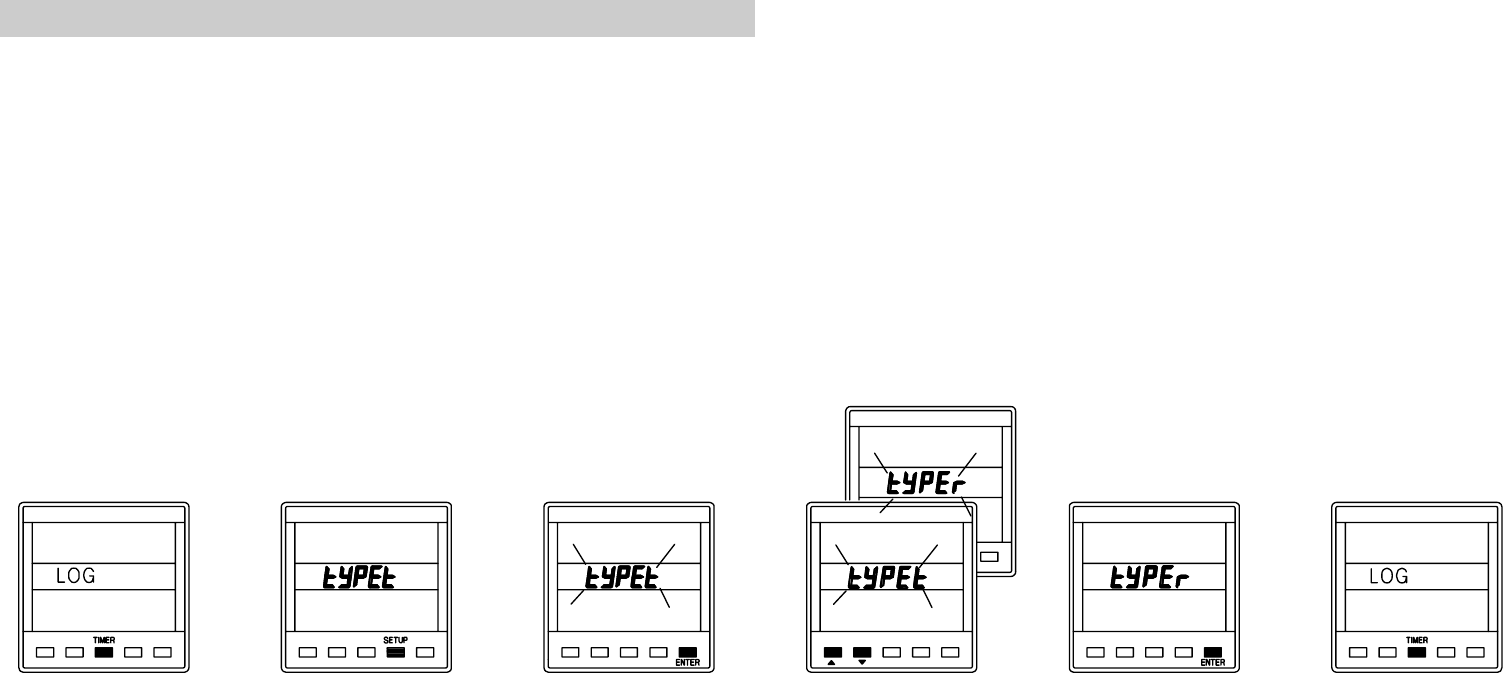

Press
TIMER
key
to display stored
log.
Press
SETUP
key
to display the
current mode.
Press
ENTER
key
if the mode needs
to be changed.
Use
S
or
T
to
change mode.
Press
ENTER
to
store the new
mode in memory.
Press
TIMER
to
complete the
change.
