EXAMPLES SYSTEMS USING NETWORK QUAD
Only one Network QUAD unit should have speed and depth
sensors connected to it and set to transducer mode. Up to
three more Network QUAD (set to repeater mode) or QUAD
REPEATER units can be connected on to the system
network.
When in repeater mode, if the data is not
being received from the system network, the
display will show OFF when a key is
pressed.
If the Network QUAD unit losses valid depth data, due either
the actual depth being outside the working range, or to
extreme turbulence in the water the LCD will show 3
"floating" bars. This shows that the unit is attempting to
calculate the depth and is still functioning.

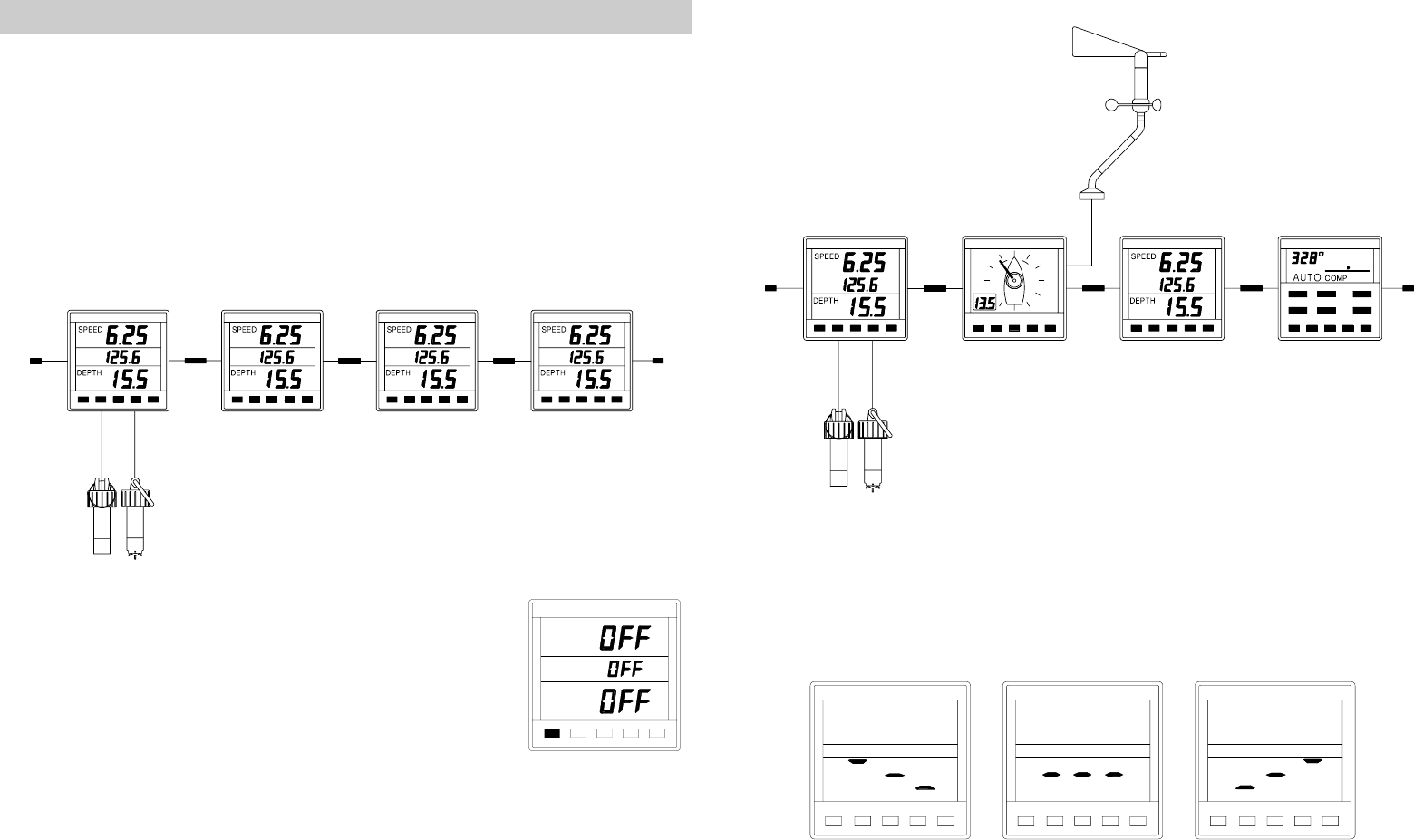

Repeater Mode Repeater unitRepeater Mode
Main unit
QUAD QUAD QUADQUAD
Sensor
Depth Speed
Sensor
SPEED
DEPTH
QUAD WIND QUAD PILOT
Depth
Senso
r
Speed
Senso
r
