Instruction manual

Adjusting Safety Obstruction Force

The Safety Obstruction Force is calculated automatically

during setup. Adjusting this is normally only necessitated

by environmental conditions such as windy or dusty areas,

and areas with extreme temperature changes.

Step 10.1 - To Increase Force Pressure

Hold down FORCE MARGIN SET button (Fig. 21)

While holding the FORCE MARGIN SET button, press

the PLUS (+) button. Each press increases the force

margin (Fig. 21).

The Open Limit LED will ﬂ ash each time the PLUS (+)

button is pressed to indicate a force increase

If the Open Limit LED is on continuously when pressing

the PLUS (+) button, this indicates that the maximum

setting has been reached.

Test the force again as per Steps 9.1 and 9.2

Step 10.2 - To Decrease Force Pressure

Hold down FORCE MARGIN SET button (Fig. 21)

While holding the FORCE MARGIN SET button, press

the MINUS (-) button. Each press decreases the force

margin (Fig. 21).

The CLOSE Limit LED will ﬂ ash each time the MINUS

(-) button is pressed to indicate a force decrease.

If the CLOSE Limit LED is on continuously when

pressing the MINUS (-) button this indicates that the

maximum setting has been reached.

Test the force again as per Steps 9.1 and 9.2

Step 10.3 - To Recall Factory Set Force

While holding down the FORCE MARGIN SET button,

press the LIMIT SET button for two (2) seconds. (Fig.

21)

Release both buttons. The default setting should now

be recalled.

Safety Obstruction Forces

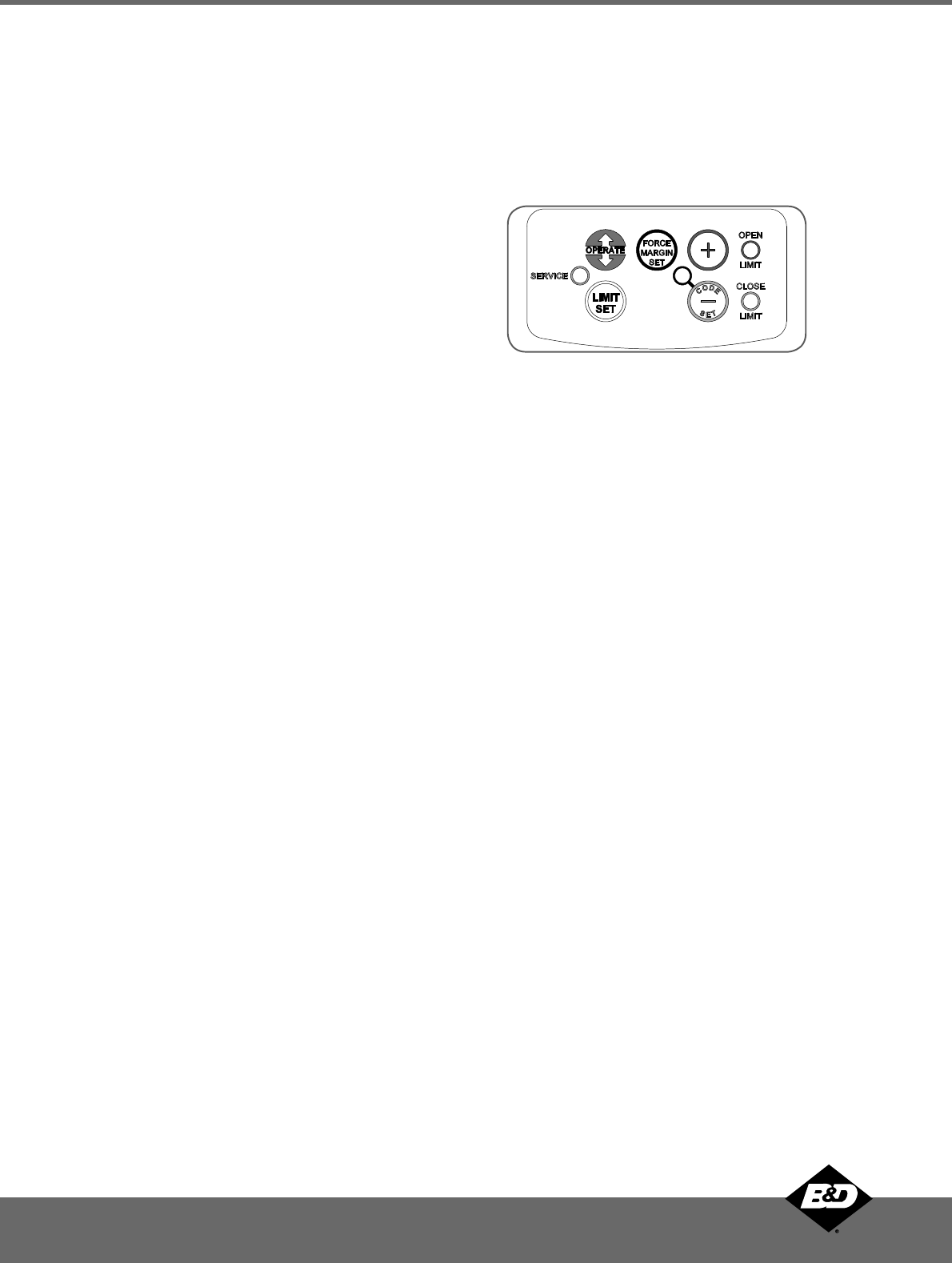

Fig.21

Diamond PD Power Drive : Instruction Manual

17Controll-A-Door

Diamond PD - Power Drive Instruction Manual
