NOTE: Ensure the door opens and closes properly.
Step 9.1 - Door Closing Test
Ensure that the door is open.

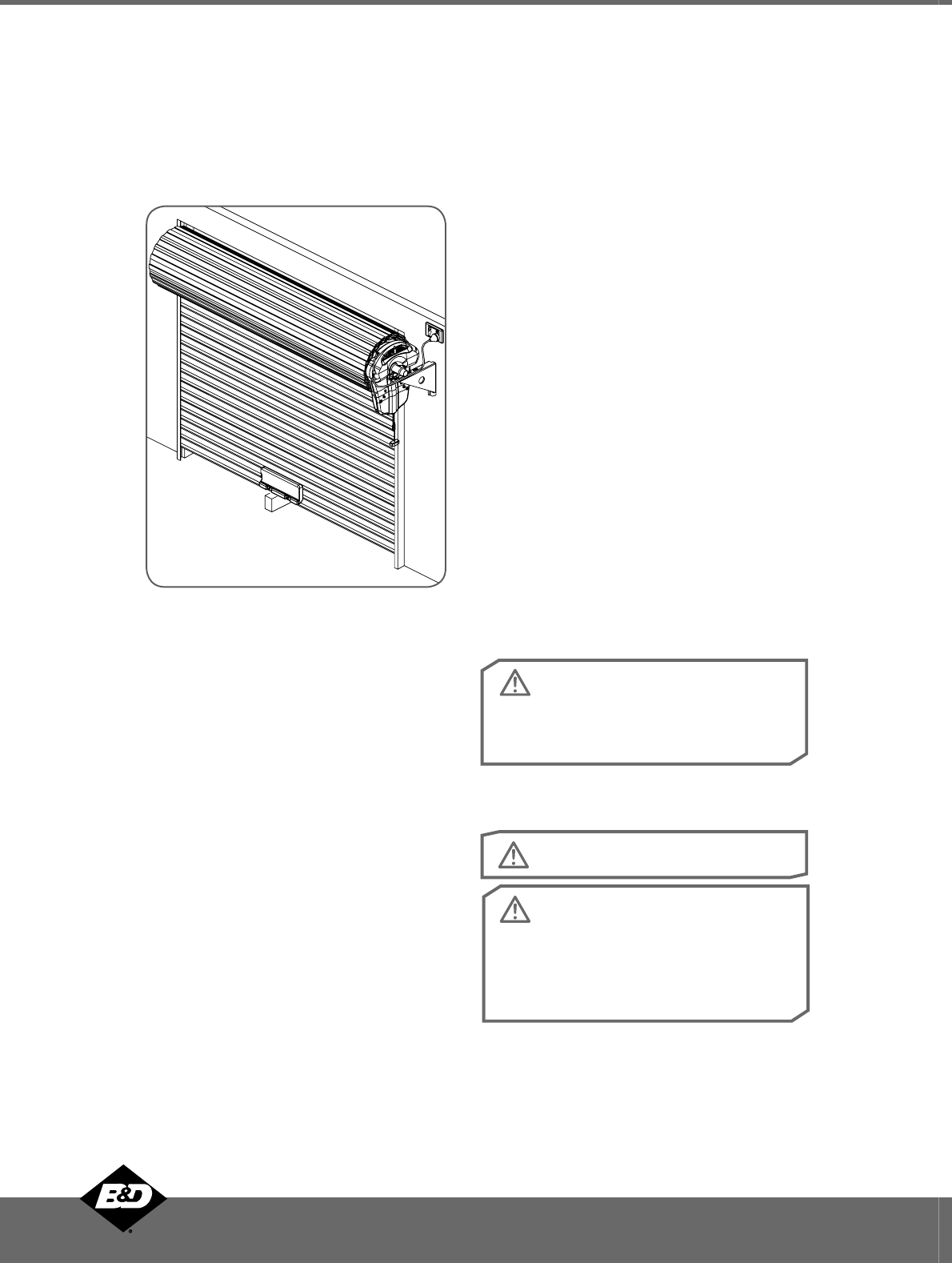

Place a 40mm obstacle fl at on the fl oor under the
middle of the garage door (Fig. 20).
Operate the door in the close direction; the door must
reverse on hitting the obstruction. The CLOSE LIMIT
LED fl ashes to indicate an obstruction while closing.
Place the 40mm obstacle on the fl oor under the
garage door and then re-test.
Step 9.2 - Door Opening Test
Ensure that the door is closed.
Operate the opener to open the door.
While the door is opening (approximately 1 metre off
the fl oor) hold the bottom edge of the door with your
hands. When a reasonable downward force is exerted,
the door should halt.
The OPEN LIMIT LED will fl ash to indicate an open
obstruction has been detected.
If the door fails to halt, operate the opener for fi ve
cycles and then re-test. If the test fails again you will
need to call for service.
IMPORTANT NOTE: If the door does not reverse readily
when closing, or stop when opening, the force may be
excessive and need adjusting, refer step10 on page 17.
IMPORTANT NOTE - The safety system is
designed to prevent entrapment or serious
injury. It relies upon physical contact with
objects in the path of the door. The safety
system alone may not prevent cosmetic
damage to motor vehicles or property.
IMPORTANT NOTE: The use of Safety Beams is
recommended on all installations of automatic garage door
openers.
WARNING: Doors requiring over 400N of force
to move must have Safety Beams fi tted for safety.
IMPORTANT NOTE - Permanently fi x the
label warning against entrapment and manual
operation in a prominent place or near any
fi xed controls After installation, ensure that
the mechanism is properly adjusted and that
the opener reverses when the door contacts a
40mm high object placed on the fl oor under
the garage door.
a.
b.
c.
d.
a.
b.
c.
d.
e.
Safety Test
Fig.20
Wood 40mm high
