Instruction manual

Coding Transmitters
Step 8.4 - Setting the Transmitter to Operate the
Auxiliary Output
It is possible to operate other devices (e.g. alarm systems)
using one of the spare buttons of a multi-channel transmitter
coded into the Auxiliary Output feature.

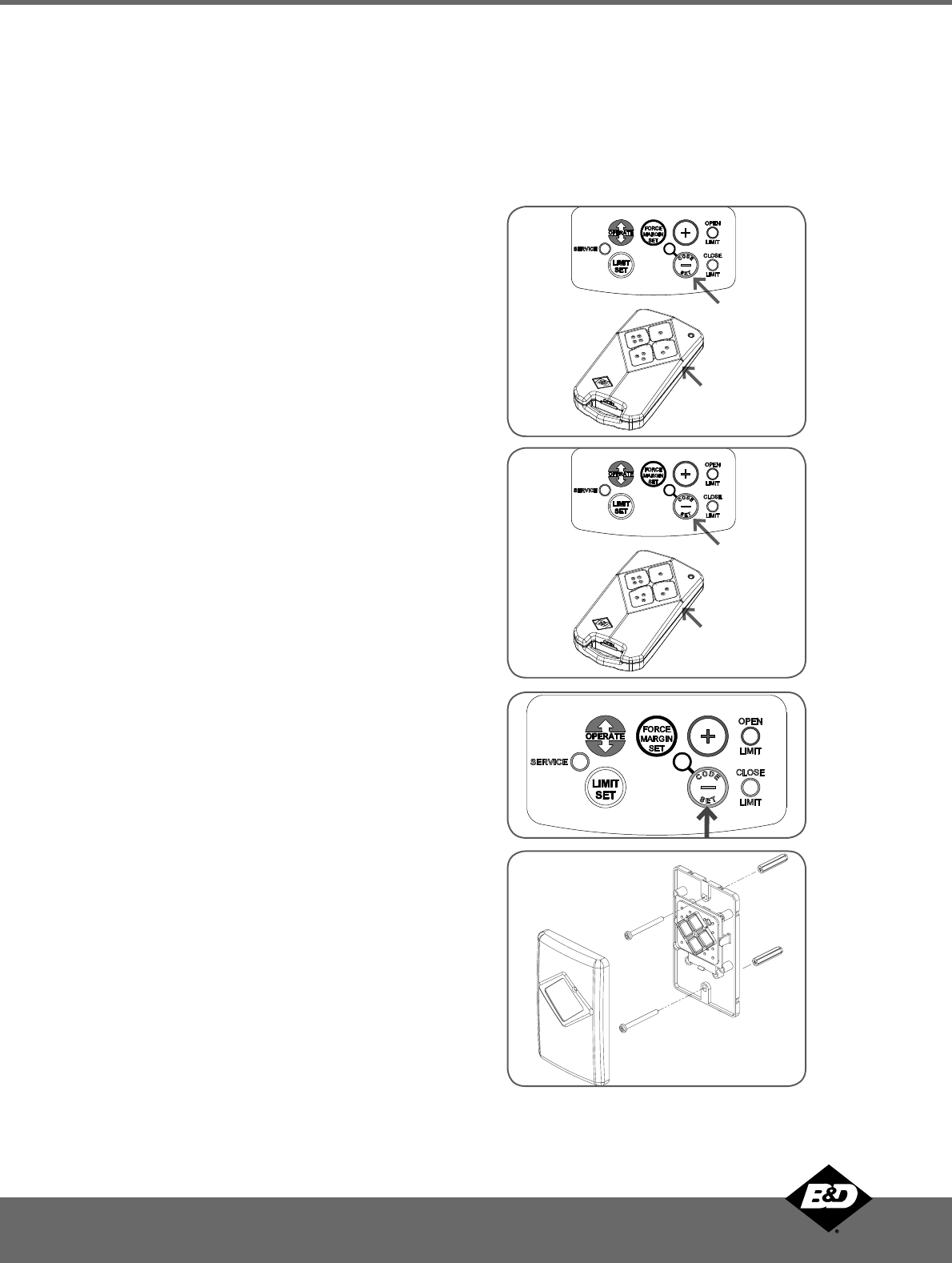

Press CODE SET button four times. The CODE SET LED
will illuminate and the courtesy light will fl ash quickly
(Fig. 16).
Press a transmitter button not already coded into the
receiver - the CODE SET LED will begin to fl ash.
Press the same transmitter button again. The CODE
SET LED will illuminate for one second and then go out.
Step 8.1 - Storing the Transmitter Code
Step 8.5 - Setting the Transmitter to Operate Pet
(Pedestrian) Mode
The opener can be programmed into a “Pet Mode” where the
door opens partially to allow pets to enter/exit the garage:
Press the CODE SET button fi ve times, the CODE SET
LED will illuminate and the courtesy light will fl ash
quickly (twice per second) to indicate learning mode for
Pet Mode is active (Fig. 17).
Choose a transmitter button not already coded into the
receiver. Press this button and the CODE SET LED will
begin to fl ash.
Press the same transmitter button again. The CODE
SET LED will illuminate for one second and then go out,
and the courtesy light will also switch off. This indicates
the code has been stored. This indicates the code has
been stored (Fig. 34).
Step 8.6 - To Erase Programmed Codes
If the CODE SET button is pressed and held for 6 seconds the
CODE SET LED will blink rapidly for one second to indicate
that all programmed codes have been erased. (Fig. 18)
Step 8.7 - Installation of the optional Wall Mounted
Transmitter
Mount the transmitter in a convenient location, yet out
of reach of children and at least 1.5m off the ground
(Fig. 19).
Make sure the door is visible from this location.
To set the transmitter codes refer to Step 8.1.
a.
b.
c.
a.
b.
c.
a.
b.
c.
Press CODE SET
button four times
Select one of the
four buttons (not
programmed yet ) you
wish to use to control
the auxiliary output
Fig.16
Fig.19
Fig.17
Press CODE SET
button fi ve times
Select one of the
four buttons (not
programmed yet ) you
wish to use to control
pet mode
Fig.18
Diamond PD Power Drive : Instruction Manual
© Copyright June 2012 B&D Doors
15Controll-A-Door
®
Diamond PD - Power Drive Instruction Manual
