USB 2.

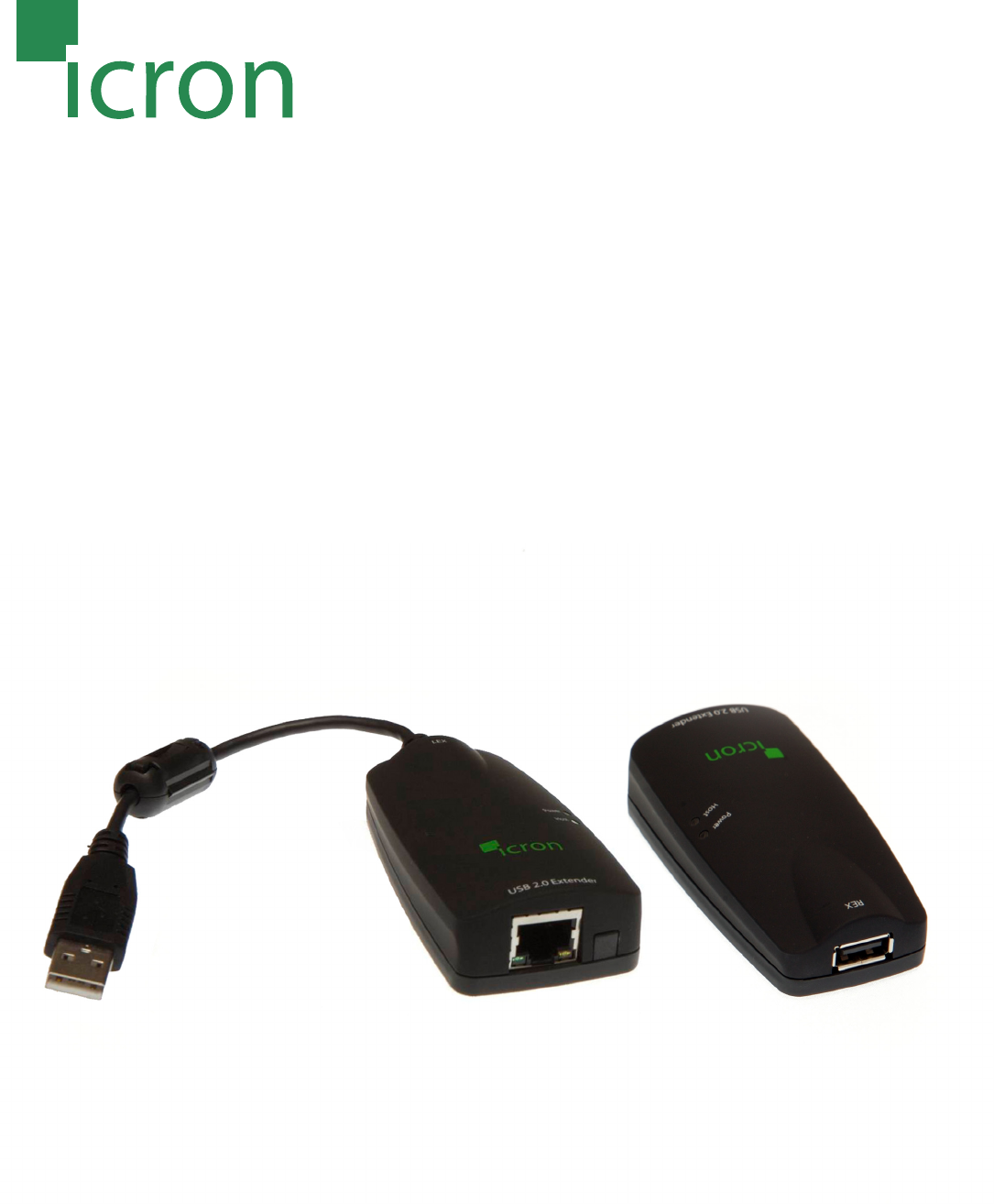

Thank you for purchasing the Ranger 2101. Please read this guide thoroughly. This document applies to Part Numbers: 00-00231 through 00-00233 and 00-00240. FCC Radio Frequency Interference Statement Warning Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Contents Introduction ................................................................................................... Ranger Product Contents ............................................................................................................ Requirements ................................................................................................................................ About the Ranger ..................................................................................................
Introduction The instructions in this guide assume a general knowledge of computer installation procedures, familiarity with cabling requirements, and some understanding of USB devices. note NOTE: Notes provide additional information that could be useful. CAUTION: Cautions provide important information about an operational requirement.
The LEX unit The LEX unit connects to the computer using the attached USB cable. Power for this unit is provided by the USB on the Host computer. Back View Top View LEX 3 6 1 2 4 5 7 ITEM TYPE USB 2.0 Extender DESCRIPTION 1 Power LED (Blue) LED turns on when power is supplied. Off when no power is supplied. 2 Host LED (Green) LED turns on when Ranger is installed properly. 3 Link Port (RJ45) Accepts RJ45 connector for CAT 5 cabling (or better).
The REX Unit The REX unit provides a USB Type A port for standard USB devices. The REX unit allows you to connect one USB device directly. Additional devices may be connected by attaching USB hubs to the REX unit. The REX unit is powered by an external AC adapter and can supply up to 500mA to the USB port. Top View REX Front View Rear View 1 2 3 7 6 4 5 USB 2.0 Extender ITEM TYPE DESCRIPTION 1 Power LED (Blue) LED turns on when power is supplied.
Installation guide USB extension up to 100m CAT 5 (or better) cable Before you can install the Ranger 2101, you need to prepare your site. 1. 2. 3. Determine where the computer is to be located and set up the computer. Determine where you want to locate the USB device(s). If you are using surface cabling, the Ranger 2101 supports a maximum distance of 100m.
Connecting the LEX unit to the REX unit note To ensure proper operation, it is recommended that only CAT 5 or better, Unshielded Twisted Pair cabling be used to connect the LEX unit to the REX unit. The cabling must have a straight-through conductor configuration with no crossovers, and must be terminated with 8 conductor RJ45 connectors at both ends. The combined length of any patch cords using stranded conductors must not exceed 10m. With Surface Cabling 1. 2.
Connecting a USB Device 1. 2. 3. Install any software required to operate the USB device(s). Refer to the documentation for the USB device(s), as required. Connect the USB device to the Device port on the REX unit. Check that the Device is detected and installed properly in the operating system. Compatibility The Ranger 2101 complies with USB 1.1 and USB 2.0 specifications governing the design of USB devices.
PROBLEM Link LED on LEX unit is on, Host LED on LEX unit is off CAUSE • The Host computer is not powered on. SOLUTION 1. Disconnect all USB devices from the REX unit. 2. Disconnect the LEX unit from the computer. • The LEX unit is not connected to the computer (when used with the optional LEX AC adapter) 3. Disconnect the REX unit from the AC power adapter. 4. Reconnect the LEX unit to the computer. • The computer does not support USB hubs. 5. Reconnect the REX unit to the AC power adapter.
NOTES 10
Frequently Asked Questions Please visit Icron’s website for answers to FAQs: http://www.icron.com/products/usb/faq.php Specifications Range 100 meters over CAT 5 (or better) stranded or solid conductor cable USB device support High-speed devices (480 Mb/s) (USB 2.0) Full speed devices (12 Mb/s) (USB 2.0 & 1.1) Low speed devices (1.5 Mb/s) (USB 2.0 & 1.1) USB hub support Any single chain can include up to 4 USB hubs plus one Ranger. USB host support EHCI (USB 2.0) and OHCI/UHCI (USB 1.
Limited Hardware Warranty Icron Technologies Corporation warrants that any hardware products accompanying this documentation shall be free from significant defects in material and workmanship for a period of one year from the date of purchase. Icron Technologies Corporation’s hardware warranty extends to Licensee, its customers and end users.
Obtaining Warranty Service To obtain warranty service, you must contact Icron Technologies Corporation within the warranty period for a Return Material Authorization (RMA) number. Icron Technologies Corporation will not accept returns without an authorized RMA number. Be sure you have the serial numbers of the LEX unit and REX unit units before calling. Package the product appropriately for safe shipment and mark the RMA number on the outside of the package.
Technical Glossary Category 5 (CAT 5) Network Cabling Category 5 cable is commonly also referred to as CAT 5. This cabling is available in either solid or stranded twisted pair copper wire variants and as UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair). UTP cables are not surrounded by any shielding making them more susceptible to electromagnetic interference (EMI). STP cables include shielding over each individual pair of copper wires and provides better protection against EMI.
Icron Technologies Corporation 4664 Lougheed Highway, Suite 221 Burnaby, BC, V5C 5T5 Canada Tel: 1-604-638-3920 Fax: 1-604-638-3930 www.icron.
