Installation Instructions (continued)

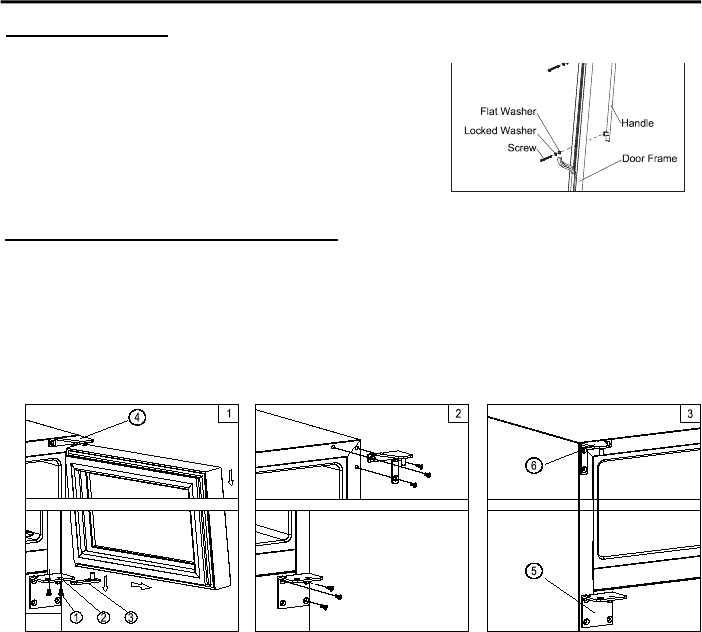

Installing the Handle
1. Remove the door gasket on the side you wish to install the
handle. Under the gasket you will see two designated
holes for handle installation
2. Install the handle tightly as shown above with two screws,
lock washers and flat washers provided.
3. Replace the door gasket.
Reversing the door swing of your appliance
Should you desire to reverse the opening direction of the door, please follow the instructions below:
Note: All parts removed must be saved to do the reinstallation of door
1. Lock screws
2. Right lower hinge
3. Door shaft assembly
4. Right top hinge
5. Glass door
6. Cabinet
7. Left top hinge
8. Left lower door hinge
1. Open the glass door and remove the two lock screws (#1) under the right bottom corner of the door, that are
used to hold the right lower hinge (#2) to the door shaft assembly (#3). Be careful to support the door with
both hands to prevent it dropping after removing the screws.
2. Pull out and down to remove the door and place it on a padded surface to prevent scratching it.
3. Now, remove the right top hinge (#4) and right lower hinge (#2) completely. Once the brackets are removed,
reinsert the lock screws (#1) to secure the bottom vent in place.
a) When you remove the lower right hinge, the ventilation grid will be free/loose on the right side
until you put the bolts back in place.
4. Take the left top hinge (#7) and left lower hinge (#8) from the plastic bag that is included with the
instruction manual and install them in the designated positions on the left side of cabinet.
a) Pull out the plastic plugs that in place of the bolt holes and re-insert them where you removed the
bolts for the top right bracket, to fill the holes left from removing the bracket
b) When you remove the lower left hinge, the ventilation grid will be free/loose on the left side until
you put the bolts back in place.
5. Turn the glass door around 180º and then relocate the door to the designated position.
6. Next, re-attach the door to the bottom bracket with the two lock screws (#1) removed in step 1 and then
tighten the bolts after the door is leveled.
