User Manual

REV. 4/17/2018 INSTAX-AM-MB92

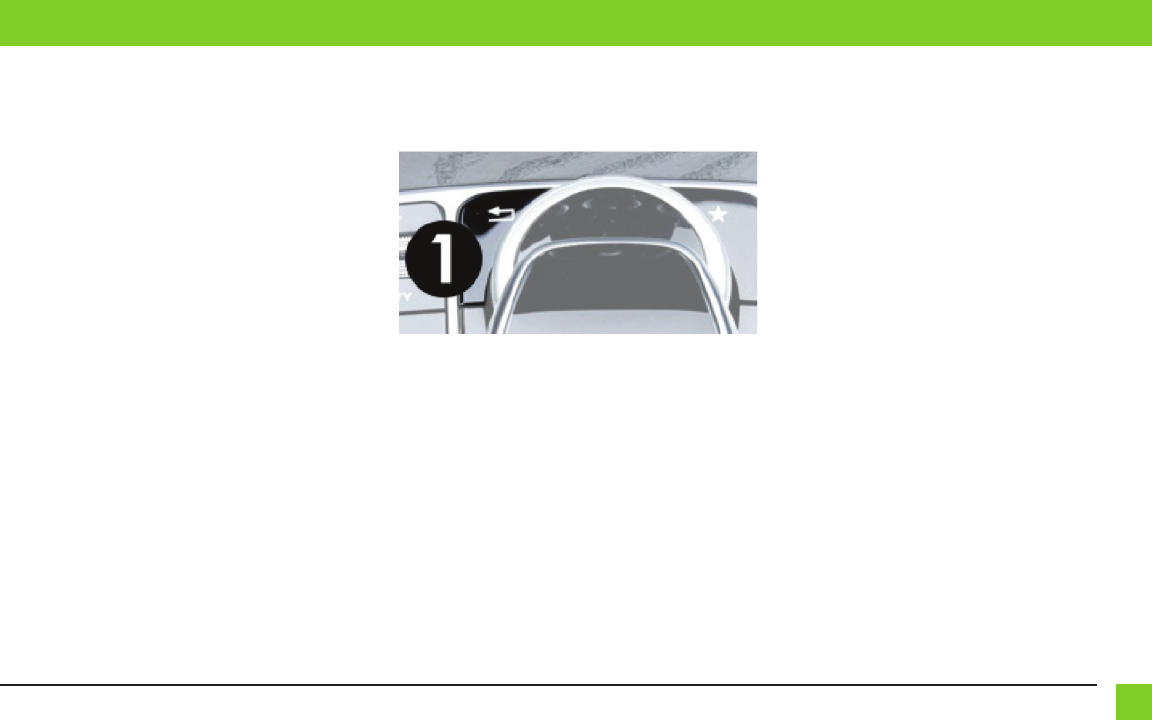

Button Conﬁguration

• The “BACK ARROW” button in the center console will be used to operate the AX-AM-MB92.

USER GUIDE

HDMI access

• Connect the

USB dongle

to the vehicles USB input. The dongle will appear as “USB AUX”.

Select USB as a source from the factory radio.

• Press and hold “Button 1” for 2 seconds to switch between the factory screen and the AX-

AM-MB92 screen.

• Double tap “Button 1” to disable the video-in-motion warning message.

Note:

There may be a slight delay in HDMI audio lip sync due to the USB audio buffer time of the OEM

system. This is dependent on the manufacturer original equipment speciﬁcation.

Front camera access

• Ensure dip switch 2 is selected to “ON”.

• Double tap “Button 1” to activate the front camera.

Rear camera access

• The backup camera will automatically activate while the vehicle is in reverse gear.

• Deselecting the reverse gear will activate the front camera, if installed and dip switch 2 is

selected to “ON”.

Note:

This camera takes priority over HDMI mode, and front camera mode, but will not deactivate the

front camera. Drive over 10 mph to cancel front camera mode.

View Version Number

• Press and hold “Button 1” for 8 seconds to enter the ﬁrmware information screen.
