User Manual

INSTALLING THE AX-AM-MB92

• Remove the main connector from the radio, then connect the

male

plug from the

AX-AM-MB92 harness

into the radio.

•

Connect the factory

male

factory connector into the

female

plug from the

AX-AM-MB92 harness

• Connect the

AX-AM-MB92 harness

into the AX-AM-MB92 interface.

• Connect one end of the

3.5mm extension cable

to the

AX-AM-MB92 harness

, then connect

the other end to the

USB dongle

. The

USB dongle

will be discussed later.

• Remove the Blue LVDS (video) cable from the radio, then connect it to the AX-AM-MB92

interface (LVDS OUT). (Figure A)

Note:

An LVDS extension cable is provided if more length is required.

• Connect the

6-pin to 4-pin LVDS (video) cable

into the radio, and then into the

AX-AM-MB92 interface (LVDS IN).

• Connect the 10-pin harness with RCA jacks into the AX-AM-MB92 interface.

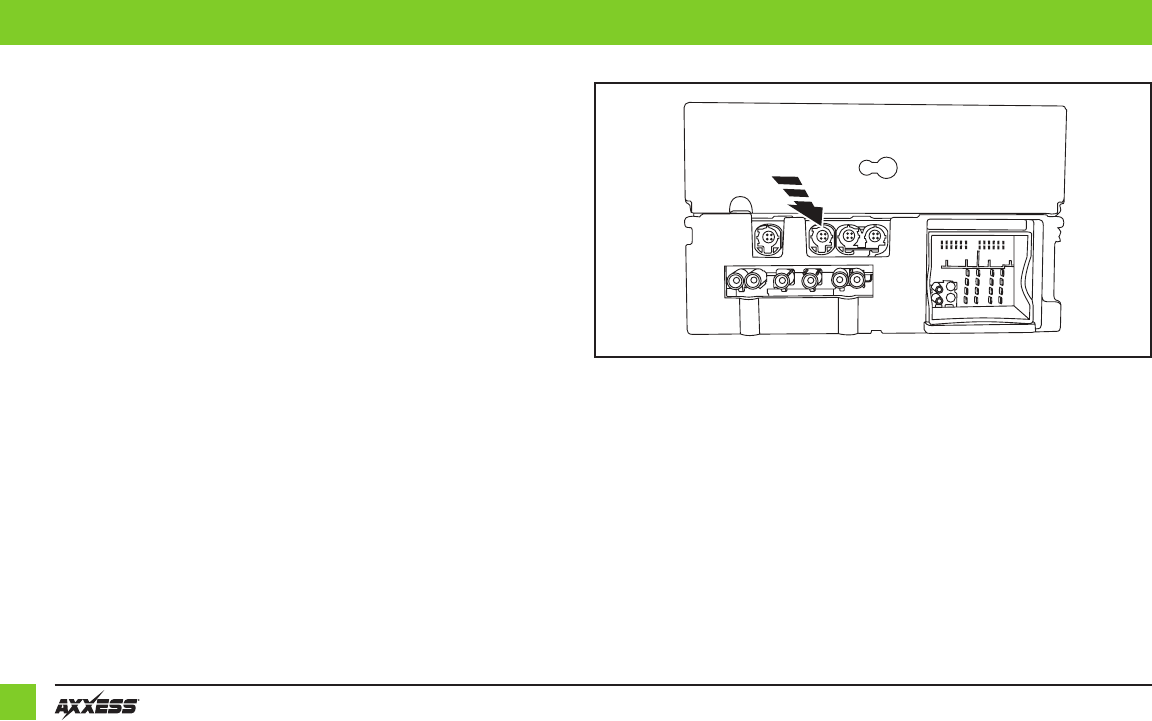

(Figure A –

Picture shown for illustration only, actual radio may differ

)
