SECTION 9 ENCLOSURES
119
FM28614
BS EN ISO
9001:
2000
Because we operate a constant improvement policy, our products are subject to change without notice.
Tel: [phone] Fax: [phone]
E-mail: [e-mail] Website: www.camdenelec.com
SECTION 9 ENCLOSURES
118
FM28614
BS EN ISO
9001:
2000
Because we operate a constant improvement policy, our products are subject to change without notice.
Tel: [phone] Fax: [phone]
E-mail: info@ca mdenelec.com Website: www.camdenel ec.com
102.085.067.049.032.014.0
42.0
154.0
CNMB/6CNMB/5
CNMB/9
CNMB/4CNMB/3CNMB/2CNMB/1
2.5
2.0
5.0
-0.7mm
BA
A
B
2.0
4.5 x 2

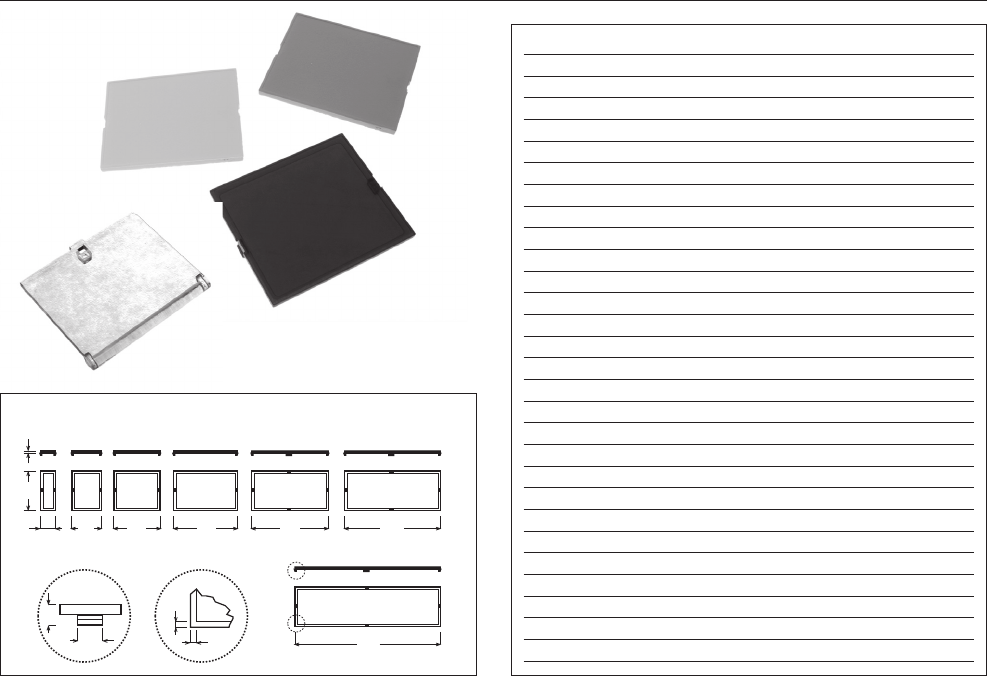

CNMB/ /P series
Panel/Covers
Type No.
CNMB/1/PR Red transparent cover
CNMB/2/PR Red transparent cover
CNMB/3/PR Red transparent cover
CNMB/4/PR Red transparent cover
CNMB/5/PR Red transparent cover
CNMB/6/PR Red transparent cover
CNMB/9/PR Red transparent cover
CNMB/1/PC Clear transparent cover
CNMB/2/PC Clear transparent cover
CNMB/3/PC Clear transparent cover
CNMB/4/PC Clear transparent cover
CNMB/5/PC Clear transparent cover
CNMB/6/PC Clear transparent cover
CNMB/9/PC Clear transparent cover
CNMB/1/PS Smoked transparent cover
CNMB/2/PS Smoked transparent cover
CNMB/3/PS Smoked transparent cover
CNMB/4/PS Smoked transparent cover
CNMB/5/PS Smoked transparent cover
CNMB/6/PS Smoked transparent cover
CNMB/9/PS Smoked transparent cover
CNMB/1/PG Grey cover
CNMB/2/PG Grey cover
CNMB/3/PG Grey cover
CNMB/4/PG Grey cover
CNMB/5/PG Grey cover
CNMB/6/PG Grey cover
CNMB/9/PG Grey cover
CNMB/ /P
CNMB/ /HTC
Type No. Description
CMEB 17.5mm Module box
CMEB/E Extension
CMEB max pcb dimensions
Extendable Module Box
Features
■ 17.5mm multiples
■ Top hat 35mm din rail or surface mounting
■ Flame retardent UL 94V0 material
■ Max 2 x 2.5mm2 solid or stranded
■ Terminal protection to IP20
CMEB/E
A 17.5mm width module box, extendable to required length.
The main box has a detachable end plate and the
extension box is sideless.
Each module, as standard, has 8 screw terminals
which are removeable as required.
CMEB
CMEB/E max pcb dimensions
PCB
TERMINAL
BLOCKS
INTER-
CONNECTION
FUSES &
FUSE-
HOLDERSBATTERIESLED’s
MINIATURE
SWITCHES
INTERFACE
MODULES &
SUPPORTSENCLOSURES
