CNMB/ /P series
Panel/Covers
Type No.
CNMB/1/PR Red transparent cover
CNMB/2/PR Red transparent cover
CNMB/3/PR Red transparent cover
CNMB/4/PR Red transparent cover
CNMB/5/PR Red transparent cover
CNMB/6/PR Red transparent cover
CNMB/9/PR Red transparent cover
CNMB/1/PC Clear transparent cover
CNMB/2/PC Clear transparent cover
CNMB/3/PC Clear transparent cover
CNMB/4/PC Clear transparent cover
CNMB/5/PC Clear transparent cover
CNMB/6/PC Clear transparent cover
CNMB/9/PC Clear transparent cover
CNMB/1/PS Smoked transparent cover
CNMB/2/PS Smoked transparent cover
CNMB/3/PS Smoked transparent cover
CNMB/4/PS Smoked transparent cover
CNMB/5/PS Smoked transparent cover
CNMB/6/PS Smoked transparent cover
CNMB/9/PS Smoked transparent cover
CNMB/1/PG Grey cover
CNMB/2/PG Grey cover
CNMB/3/PG Grey cover
CNMB/4/PG Grey cover
CNMB/5/PG Grey cover
CNMB/6/PG Grey cover
CNMB/9/PG Grey cover
CNMB/ /P
CNMB/ /HTC
Type No. Description
CMEB 17.5mm Module box
CMEB/E Extension
CMEB max pcb dimensions
Extendable Module Box
Features
■ 17.5mm multiples
■ Top hat 35mm din rail or surface mounting
■ Flame retardent UL 94V0 material
■ Max 2 x 2.5mm2 solid or stranded
■ Terminal protection to IP20
CMEB/E
A 17.5mm width module box, extendable to required length.
The main box has a detachable end plate and the
extension box is sideless.
Each module, as standard, has 8 screw terminals
which are removeable as required.
CMEB
CMEB/E max pcb dimensions
PCB
TERMINAL
BLOCKS
INTER-
CONNECTION
FUSES &
FUSE-
HOLDERSBATTERIESLED’s
MINIATURE
SWITCHES
INTERFACE
MODULES &
SUPPORTSENCLOSURES
IC & PLCC
SOCKETS
RELAY
BASES
CONTROL
PRODUCTS
Features
■ 16mm high
■ Accepts hinged,
curved lid
■ Can house an
additional horizontal pcb
102.085.067.049.032.014.0
42.0
154.0
CNMB/6CNMB/5
CNMB/9
CNMB/4CNMB/3CNMB/2CNMB/1
2.5
2.0
5.0
-0.7mm
BA
A
B
2.0
4.5 x 2

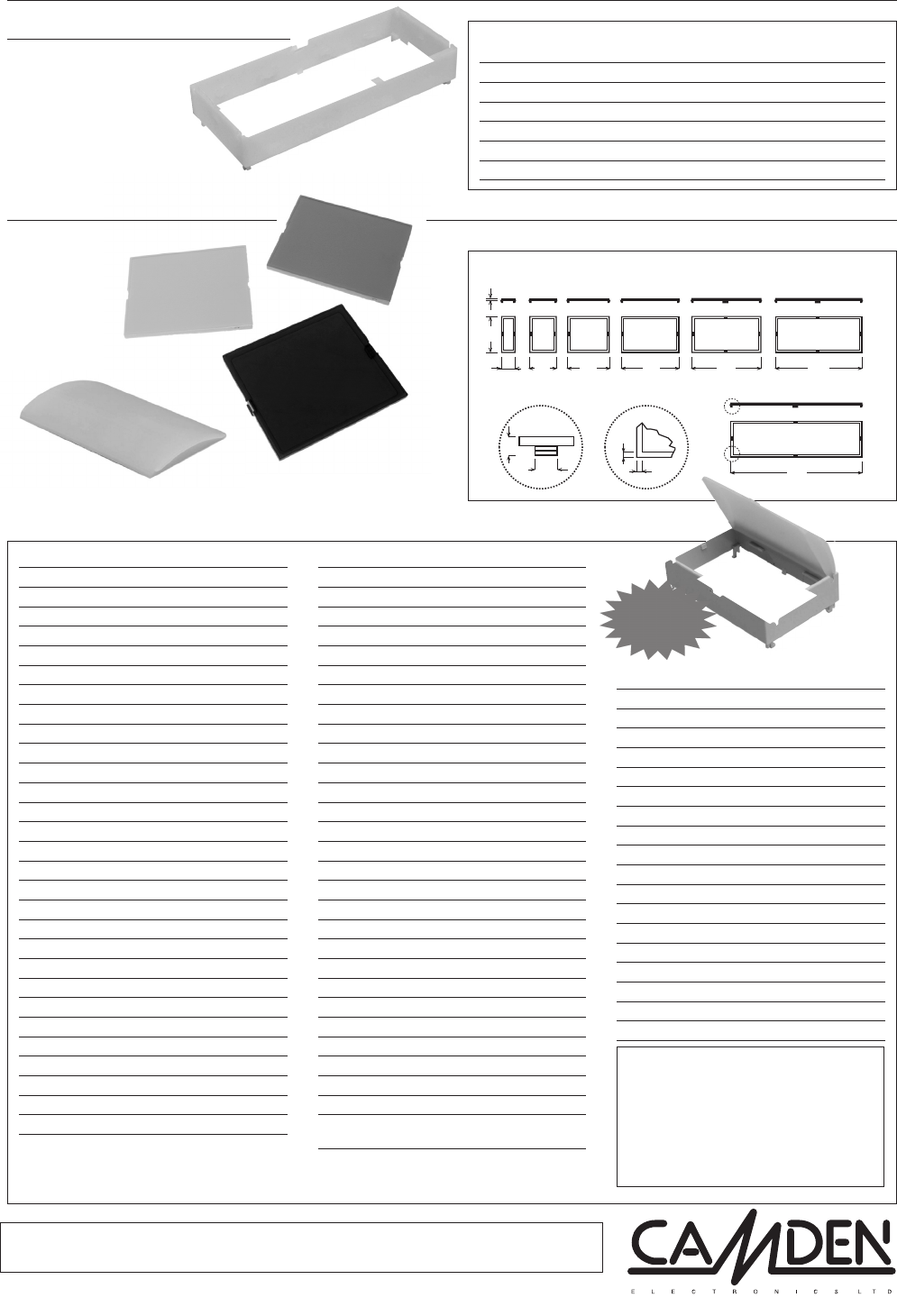

CNMB/ /P series
Panel/Covers
Extended Height module
Type No. Clip on covers
CNMB/1/PR Red transparent
CNMB/2/PR
Red transparent
CNMB/3/PR Red transparent
CNMB/4/PR
Red transparent
CNMB/5/PR Red transparent
CNMB/6/PR Red transparent
CNMB/9/PR
Red transparent
CNMB/1/PRC Red transparent curved
CNMB/2/PRC
Red transparent curved
CNMB/3/PRC Red transparent curved
CNMB/4/PRC
Red transparent curved
CNMB/5/PRC Red transparent curved
CNMB/6/PRC Red transparent curved
CNMB/9/PRC
Red transparent curved
CNMB/1/PC Clear transparent
CNMB/2/PC
Clear transparent
CNMB/3/PC Clear transparent
CNMB/4/PC Clear transparent
CNMB/5/PC
Clear transparent
CNMB/6/PC Clear transparent
CNMB/9/PC
Clear transparent
CNMB/1/PCC Clear transparent curved
CNMB/2/PCC
Clear transparent curved
CNMB/3/PCC Clear transparent curved
CNMB/4/PCC Clear transparent curved
CNMB/5/PCC
Clear transparent curved
CNMB/6/PCC Clear transparent curved
CNMB/9/PCC
Clear transparent curved
The above fit the standard height boxes
Type No. Clip on covers
CNMB/1/PS Smoked transparent
CNMB/2/PS
Smoked transparent
CNMB/3/PS Smoked transparent
CNMB/4/PS
Smoked transparent
CNMB/5/PS Smoked transparent
CNMB/6/PS Smoked transparent
CNMB/9/PS
Smoked transparent
CNMB/1/PSC Smoked transparent curved
CNMB/2/PSC
Smoked transparent curved
CNMB/3/PSC Smoked transparentcurved
CNMB/4/PSC
Smoked transparentcurved
CNMB/5/PSC Smoked transparent curved
CNMB/6/PSC Smoked transparentcurved
CNMB/9/PSC
Smoked transparent curved
CNMB/1/PG Grey
CNMB/2/PG
Grey
CNMB/3/PG Grey
CNMB/4/PG Grey
CNMB/5/PG
Grey
CNMB/6/PG Grey
CNMB/9/PG
Grey
CNMB/1/PGC Grey curved
CNMB/2/PGC
Grey curved
CNMB/3/PGC Grey curved
CNMB/4/PGC Grey curved
CNMB/5/PGC
Grey curved
CNMB/6/PGC Grey curved
CNMB/9/PGC
Grey curved
The above fit the standard height boxes
Hinged covers on
Type No. extended only
CNMB/2/HPCC Hinged clear curved
CNMB/3/HPCC
Hinged clear curved
CNMB/4/HPCC Hinged clear curved
CNMB/5/HPCC Hinged clear curved
CNMB/6/HPCC
Hinged clear curved
CNMB/9/HPCC Hinged clear curved
CNMB/2/HPRC
Hinged transparent red curved
CNMB/3/HPRC Hinged transparent red curved
CNMB/4/HPRC Hinged transparent red curved
CNMB/5/HPRC
Hinged transparent red curved
CNMB/6/HPRC Hinged transparent red curved
CNMB/9/HPRC
Hinged transparent red curved
CNMB/2/HPGC Hinged grey curved
CNMB/3/HPGC
Hinged grey curved
CNMB/4/HPGC Hinged grey curved
CNMB/5/HPGC Hinged grey curved
CNMB/6/HPGC
Hinged grey curved
CNMB/9/HPGC Hinged grey curved
Type No. Description Width
CNMB/2/E Extended height module 34.7mm
CNMB/3/E
Extended height module 52.0mm
CNMB/4/E Extended height module 70.0mm
CNMB/5/E
Extended height module 86.5mm
CNMB/6/E Extended height module 104.5mm
CNMB/9/E
Extended height module 157.7mm
CNMB/ /P
CNMB/ /E series
Kits available from our distributors
Kits consist of base, top panel, terminal ,
and clips for rail or wall mounting. Each kit
includes 2 perforated terminal covers enabling
customisation as required. CNMB/6/kit &
CNMB/9/kit are supplied with additional blank
terminal guards.
NEW
PCB
TERMINAL
BLOCKS
INTER-
CONNECTION
FUSES &
FUSE-
HOLDERSBATTERIES
LED’s
MINIATURE
SWITCHES
INTERFACE
MODULES &
SUPPORTS
ENCLOSURES
IC & PLCC
SOCKETS
RELAY
BASES
CONTROL
PRODUCTS
