User manual

Then choose whether you want to change S0 extracellular stimulation, S1 extracellular stimulation or

Intracellular analog channel 0 (and possibly digital) stimulation by clicking on the S0, S1 or IC0 tabsheet.

S0 and S1 stimulation can be either ‘Off’ or ‘On’ as set by the pop-up menu that pops up when the mouse

cursor is clicked on the S0 or S1 Label/Button in the S0 or S1 tabsheet (Fig. 4.9.1.2).

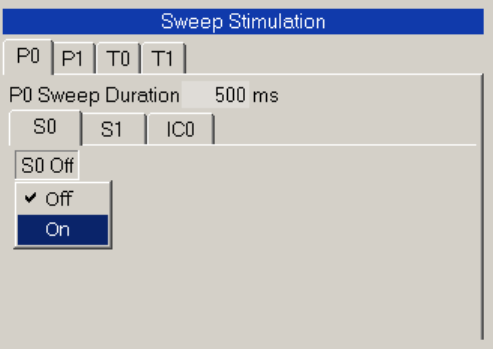

Fig. 4.9.1.2. Setting S0 pulses ‘Off’ or ‘On’ by clicking on the S0 Label/Button that raises up when the

mouse cursor is moved over it.

If S0 or S1 extracellular stimulation is ‘On’, the output for P0, P1, T0, or T1 Sweeps can be either:

1) Pulses

2) Trains

which is set by changing EochB to PulsesB or TrainsB (Fig. 4.9.1.3).

Note that in this version, the DOS LTP Program Dual Trains is not supported, so stimulations such as

prime burst stimulation cannot be generated by only one extracellular output. However, this will be

supplanted by up to 14 more Pulses/Trains (‘PulsesO/TrainsO’) with one level of looping among the

pulses/trains, so this will easily include prime burst stimulation.

Note that there does not need to be any S0 or S1 pulse stimulation in a sweep, nor does there need to be

any IC analog or digital output. So actually, there needs to be no stimulation in a sweep.
