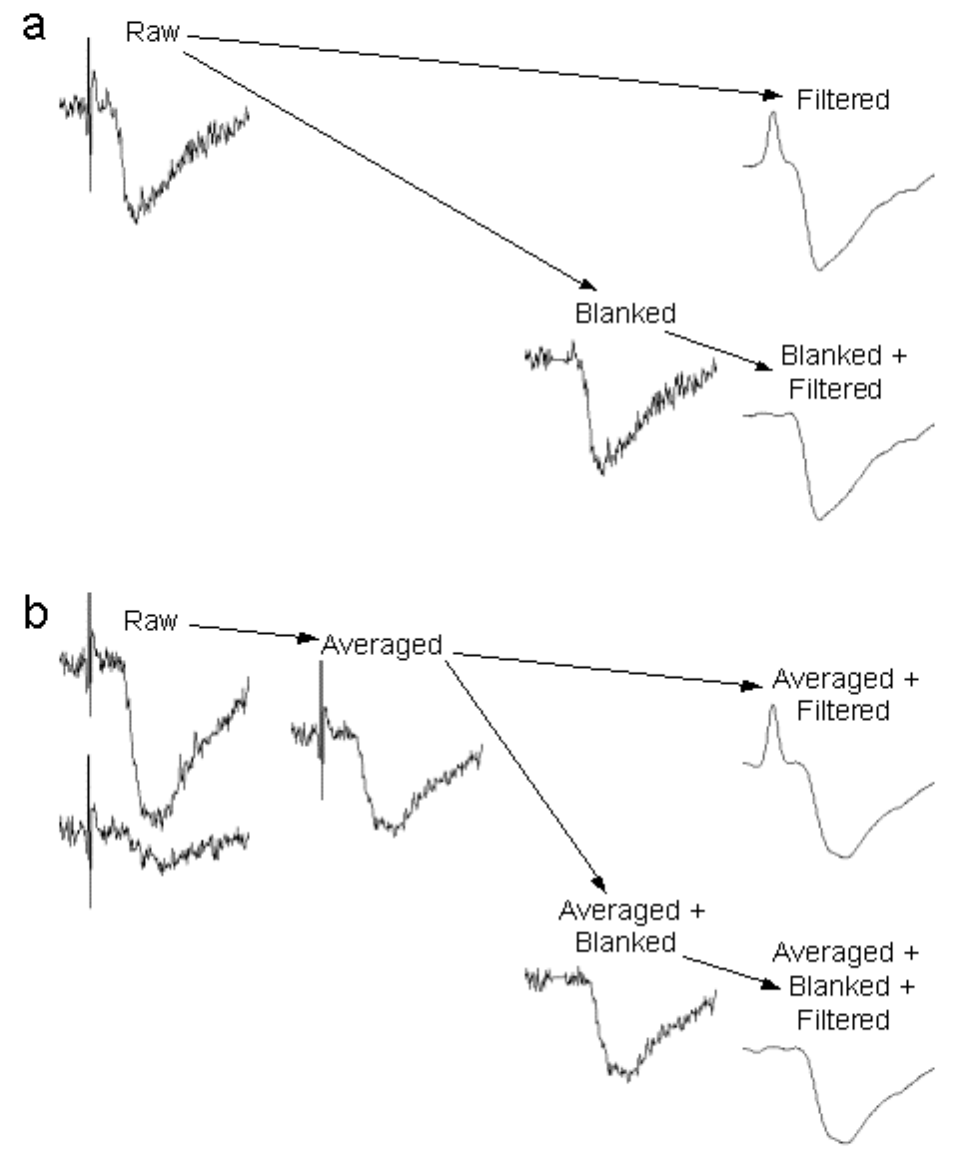

Fig. 4.5.2. Raw sweeps can be signal averaged, stimulus artifact blanked, and/or low-pass digitally
filtered. a) Raw sweeps (with no signal averaging) can be digitally low-pass filtered, stimulus artifact
blanked, or stimulus artifact blanked first and then filtered. The insets show the raw sweep (left trace), the
filtered sweep (right top trace), the stimulus artifact blanked sweep (middle trace), and the blanked and
filtered sweep (right bottom trace). b) Raw sweeps can also be signal averaged, then low-pass filtered,
stimulus artifact blanked, or stimulus artifact blanked first and then filtered. The insets show two raw
sweeps (left traces), the signal averaged sweep obtained from the two raw sweeps (2
nd
trace), the
averaged and filtered sweep (right top trace), the averaged and stimulus artifact blanked sweep (3
rd
trace), and the averaged, blanked and filtered sweep (right bottom trace).
