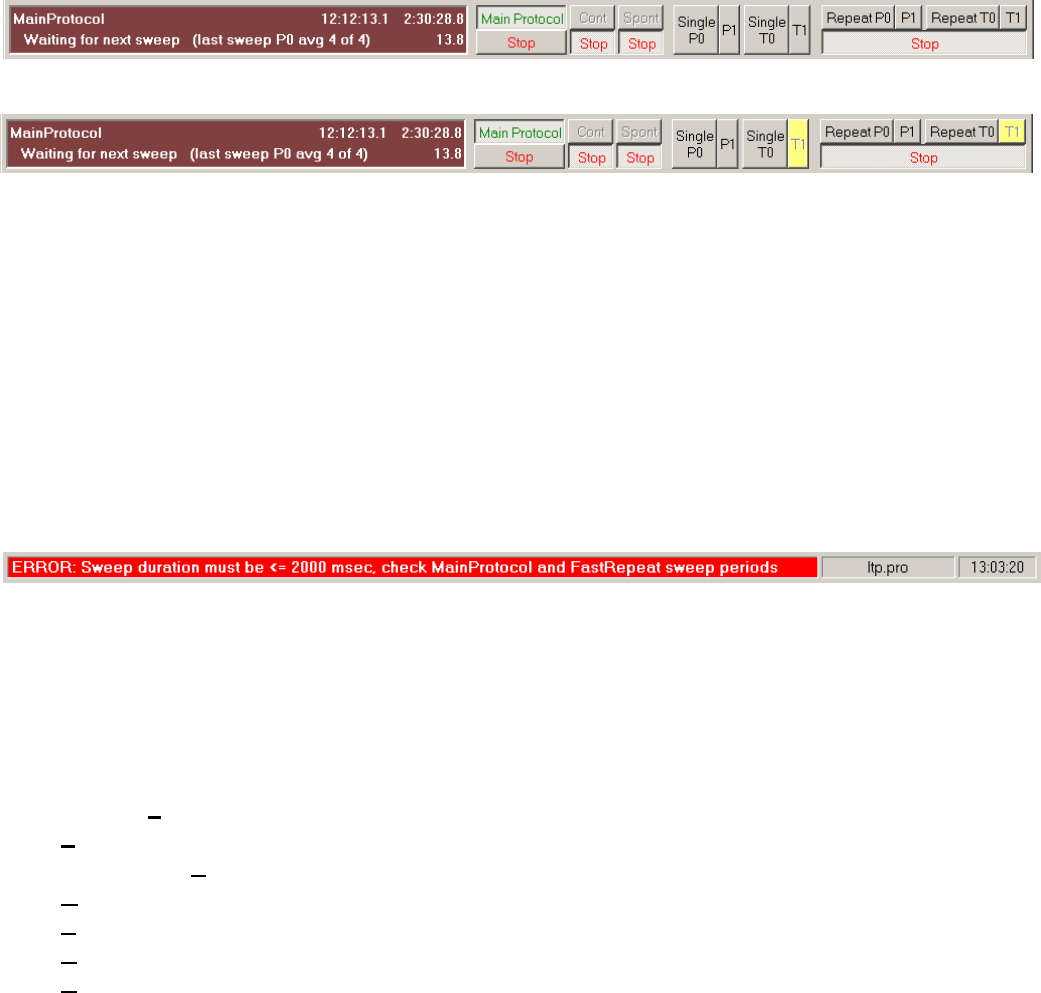

Fig. 3.1.5.1. Run Panel (left) and Run Buttons (right). The Run Buttons show full functionality for the
Standard and Advanced Modes (top), but lack the evoked Single and Repeat T1sweeps for the Basic
Mode (bottom).
3.1.6 Status Bar
The Status Bar area (Fig. 3.1.6.1) is divided into three regions: 1) the left Status or Message Line
(Green means successful operation message, Yellow means warning message, Red means error
message), 2) the protocol file name running (*.pro), and 3) the Time of Day.
Fig. 3.1.6.1. Status Bar.
3.2 Menus
Win LTP uses the following Menus:
1) Protocol File Menu (Fig. 3.2.1)
2) SweepFile Menu for loading, saving and printing individual ADsweep files (Fig. 3.2.2)
3) Amplitude or AmpFile Menu for performing sweep analysis and reanalysis (Fig. 3.2.3)
4) Options Menu (Fig. 3.2.4)
5) View Menu (Fig. 3.2.5)
5) Run Menu - an alternative to running protocols by pushing function keys (Fig. 3.2.6)
6) Help Menu (Fig. 3.2.7)
