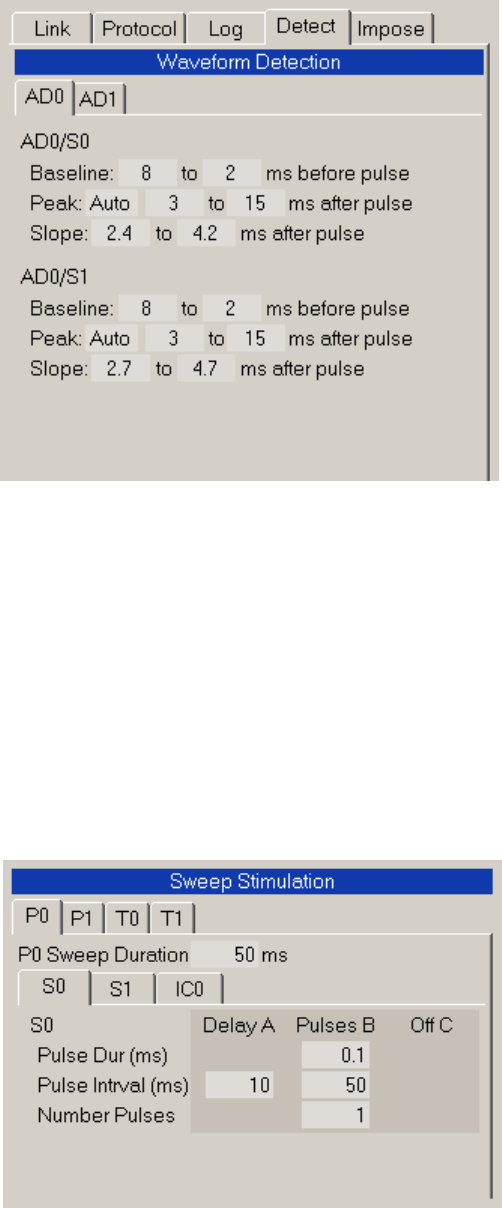

Fig. 3.1.2.3.. Detect tabsheet containing both the AD0 and AD1 ‘sub’ tabsheets.
3.1.3 Sweep Stimulation Field Area
The middle left area of the program shows the Sweep Stimulation field area, the area where value fields
that control stimulation values for each sweep, P0, P1, T0 and T1, are located. For instance, Fig. 3.1.3.1
shows P0 Sweep Stimulation that includes Sweep Duration and S0 Pulse Duration, Interval and Number
in the S0 ‘sub’ tabsheet. In addition to the S0 ‘sub’ tabsheet, there is the S1 and IC0 (IntraCellular Ch 0)
‘sub’ tabsheet stimulations.
Fig. 3.1.3.1. Sweep Stimulation Field Area showing S0 pulse stimulation in a P0sweep.
A different example of IC0 stimulation (not related to the Fig. 3.1.1 example) is shown in Fig. 3.1.3.2.
