For now just click on the ‘Init’ Protocol button (Fig. 2.12.1, right top panel), to be
able to run repetitive P0sweeps.
2.13 Set the AD Gain, DataType, Sample Interval and Other
Parameters
2.13.1 Set the AD Gain, Data Type, and Sample Interval in the Edit Protocol
dialog box
Once in the Edit Protocol dialog box, click on the Acquisition/Stimulation Parameters tabsheet (Fig.
2.13.1.1).
The Data Type Units determines whether an acquisition channel is in extracellular or intracellular current
clamp mode, or in patch clamp voltage clamp mode.
Mode DataType Unit
Extracellular mV
Intracellular current clamp mV
Patch clamp voltage clamp mode pA

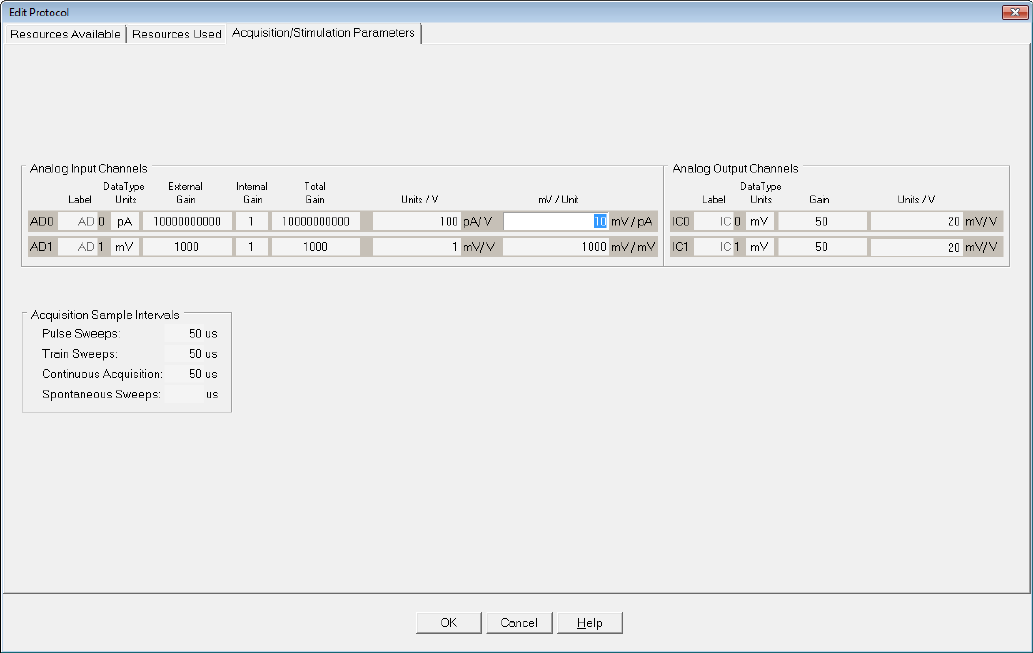

Fig. 2.13.1.1. Edit Protocol dialog box showing the Acquisition/Stimulation Parameters tabsheet. Note
the new addition of the Analog Input Channels mV/Unit fields.
