For M or X-Series boards, National Instruments recommends that the computer and board have warmed
up for at least 15 minutes. Also, National Instruments recommends that you periodically self-calibrate the
board by clicking on:
Options -> Recalibrate Data Acquisition Board

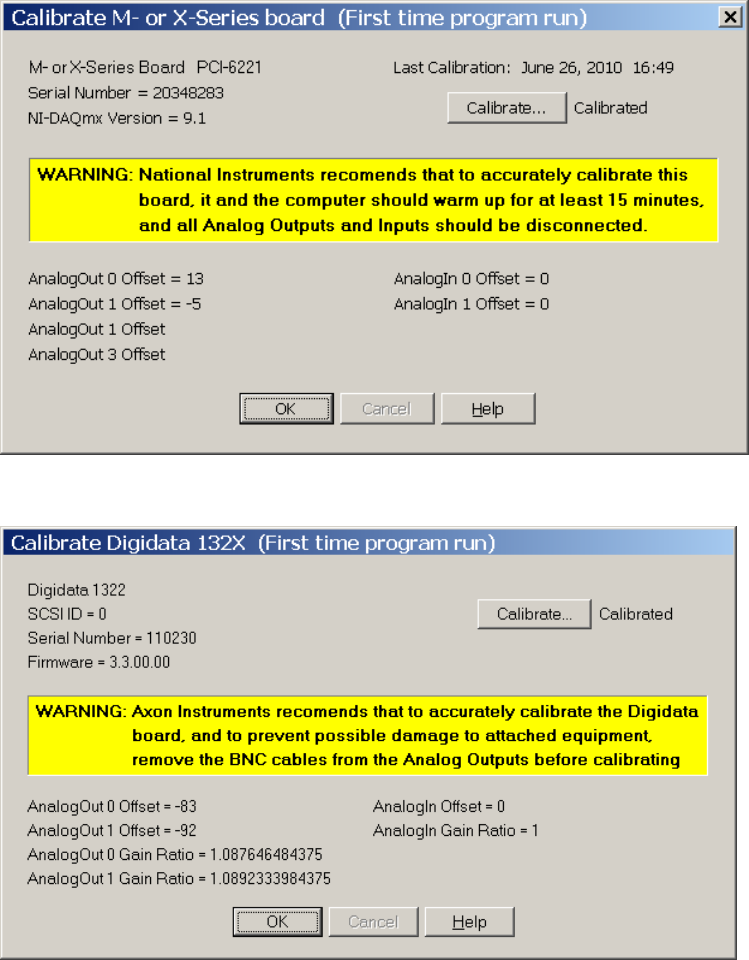

Fig. 2.9.1. The Calibrate M-Series dialog box after calibration has successfully concluded.
Fig. 2.9.2. The Calibrate Digidata 132x dialog box after calibration has successfully concluded.
2.10 Connect the amplifier and stimulus isolation units to the data
acquisition board
To connect the amplifier(s) analog inputs and outputs, and the stimulus isolation units (SIUs) use the main
menu command
