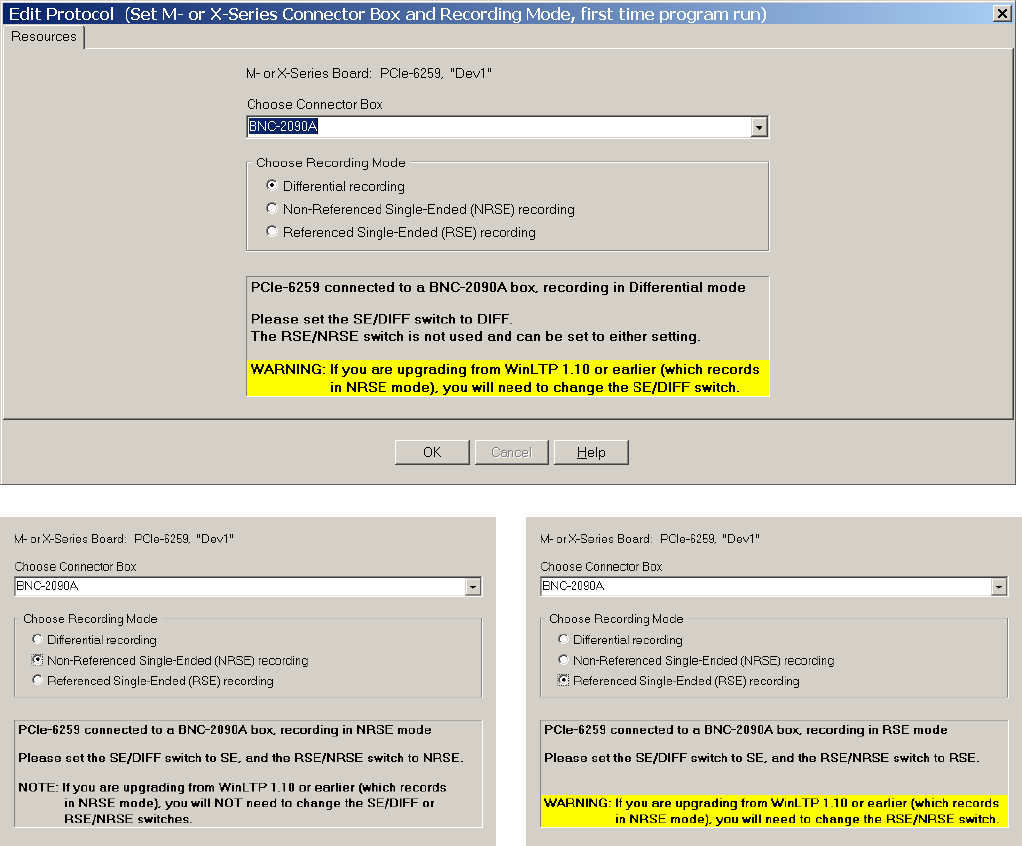

Fig. 2.8.4. The Resources tabsheet in the Edit Protocol (Set M- or X-Series Connector Box and
Recording Mode, first time program run)’ dialog box showing the choice of a BNC-2090A Connector Box.
With the BNC-2090A you can choose between Differential recording mode (top panel) , Non-Referenced
Single-Ended (NRSE) mode (lower left panel), and Referenced Single-Ended (RSE) mode (lower right
panel).
