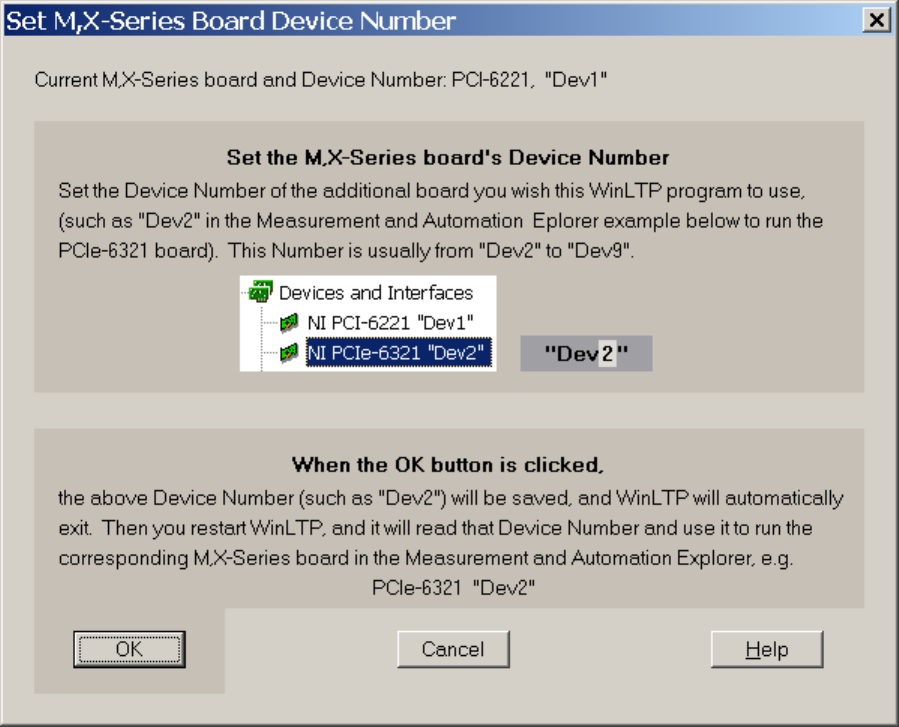

Fig 2.4.7.1. The Set M,X-Series Board Device Number dialog box used to set the Device Number of an

additional M- or X-Series board.

2.5 Install the Axon Digidata 1320A or 1322A board

2.5.1 Install Digidata board in Windows 2000 or XP

NOTE: If you are installing just the WinLTP Reanalysis program, you do not have to first install AxoScope

or pClamp, inotherwords (e.g., you can skip this section).

2.5.1.1 Install the SCSI card

Put the SCSI card into the computer and connect the Digidata 1320A or 1322A board to the SCSI card

according to the instructions from Axon Instruments included with the board. Do not power up the board,

but turn on the computer to see that the SCSI card is recognized.

Note that Windows XP security support from Microsoft has stopped on April 8. 2014, and Microsoft no

longer supplies Windows XP security code updates. Therefore, all Windows XP computers should be

disconnected from the Internet by now. However, the Microsoft Security Essentials
