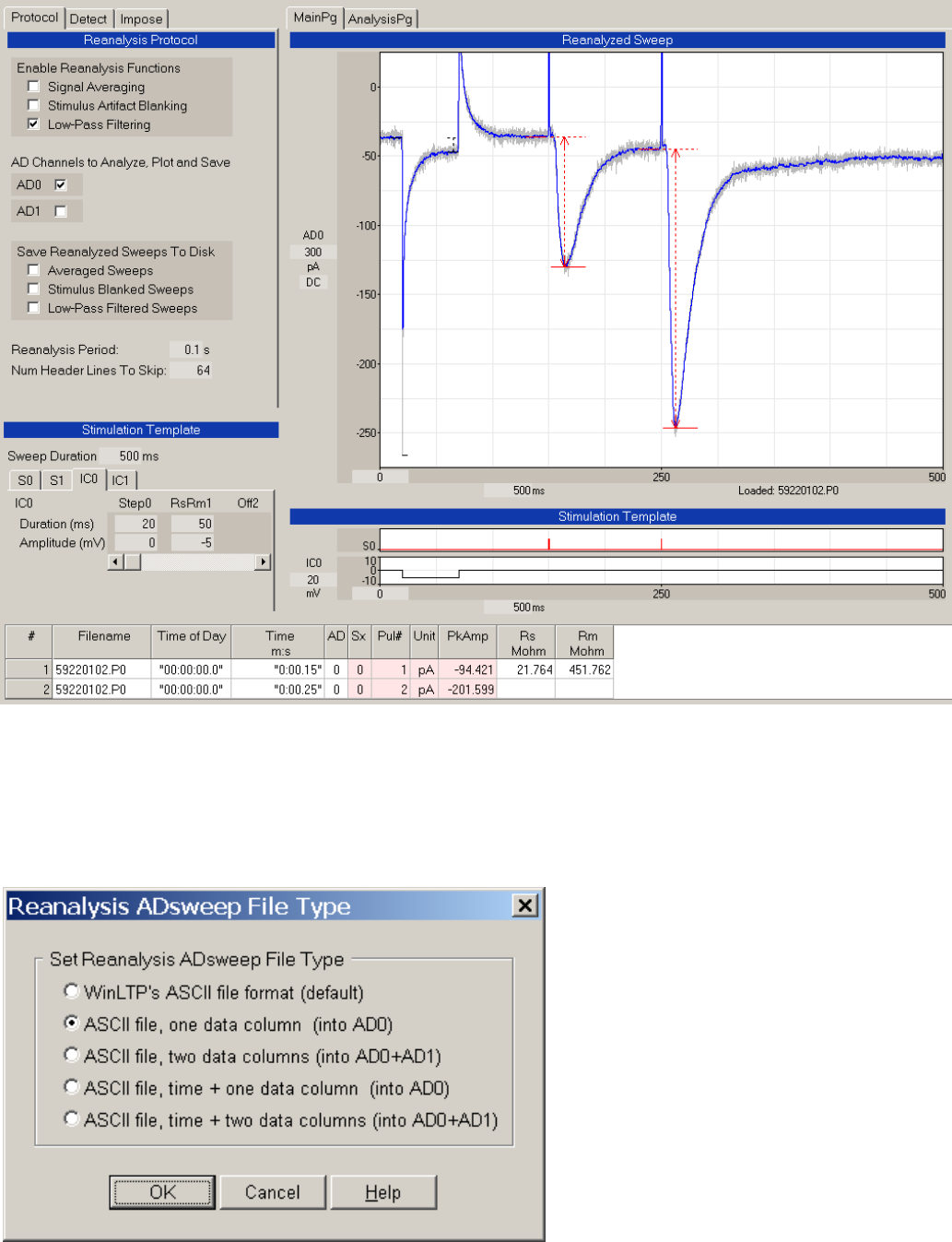

Fig. 15.12.1.1. WinLTP reanalysis of general ASCII ADsweep files with or without a header. This figure
shows the analysis of two EPSC Peak Amplitudes, Rs (by using capacitative transient peak), and Rm.
The RsRm1 step is used to provide the timing for when the Rs/Rm stimulus pulse occurs. The Num
Header Lines To Skip at the bottom of the Reanalysis Protocol section is used to skip the first 64 lines of
this file header. This sweep has been low-pass digitally filtered.
Fig. 15.12.1.2. The Reanalysis ADsweep File Type dialog box.
