Normally, for publications you don’t want to print as much information as in Fig. 15.11.3. Fig. 15.11.4
shows an Enhanced Metafile from the ADsweep graph in Fig. 15.11.1, but only the Blanked trace and the
Calibration Bar are saved. To capture this graph, only the Calibration Bar and Blanked check boxes in
the MetaFile dialog box were checked.
Because the Windows Enhanced Metafile is vector based, it can be compressed or stretched anyway you
want (Fig. 15.11.5).
Note that the Calibration Bar cannot be easily moved relative to the trace, so you have to plan ahead
when making/saving the Enhanced Metafile and place the trace where you want in relation to the
Calibration Bar (which cannot be moved).

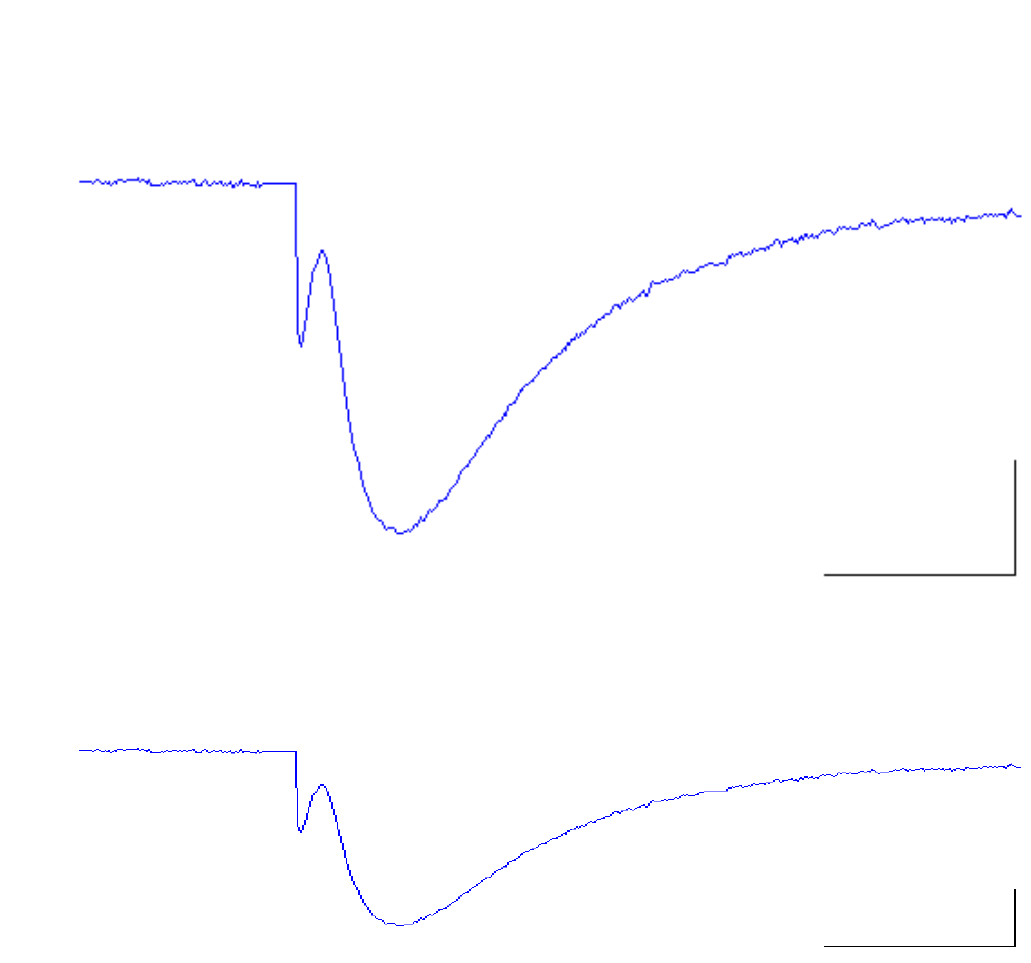

Fig. 15.11.4. An Windows Enhanced Metafile 61170026_AP0_AD0_1.emf more appropriate for
publication showing only the Calibration Bar and the Hold-Blanked trace.
Fig. 15.11.5. Because the Windows Enhanced Metafile is vector based, the Enhanced Metafile
61170026_AP0_AD0_1.emf in Fig. 15.11.4 can be compressed or stretched anyway you want, in this
case only compressed vertically.
