User manual

264

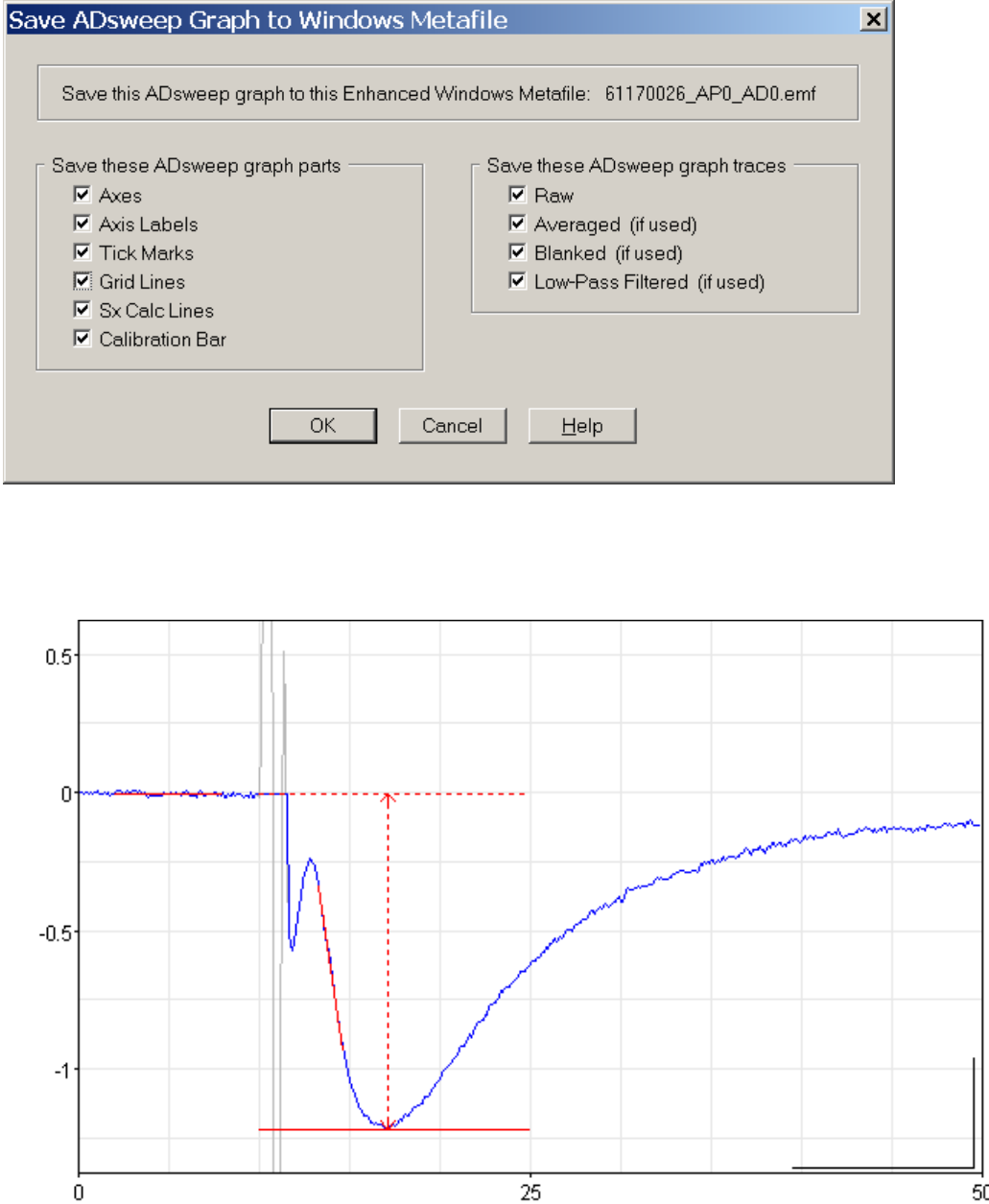

Fig. 15.11.2. The Save ADsweep Graph to Windows Metafile dialog box. The check boxes checked are
used to save the ADsweep graph of Fig. 15.11.1 to the Enhanced Metafile in Fig. 15.11.3.
Fig. 15.11.3. An Windows Enhanced Metafile 61170026_AP0_AD0.emf showing everything possible
(Axes, Axis Labels, Tic Marks, Grid Lines, Sx Calc Lines and Calibration Bar) and the Raw (gray) and
Hold-Blanked (LightBlue) trace. This was captured using the dialog box selections in Fig. 15.11.2.
