User manual

236
conversion period from 0.0 sec on up to set sufficient time between conversions to allow looking at the
ADsweep files being converted.
Once the choice of which ABF file to convert to is made, next click on the menu item (Fig 13.1.1A):
SweepFile -> Set ABF File Type and Conversion Period
to call up the Select Many ADsweep Files to Convert to One/Many Episodic/Gap-Free ABF files dialog
box (Fig. 13.1.1C), and just select the files to convert and click the Open button to begin conversion.
A
B
C

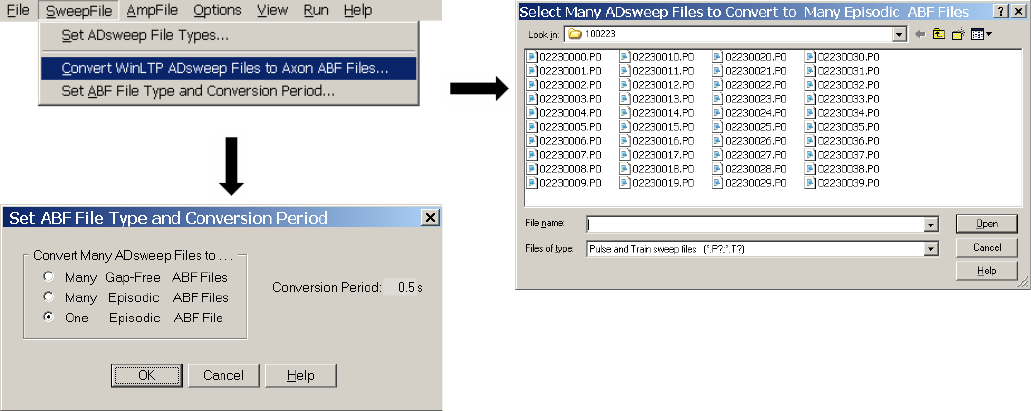

Fig. 13.1.1. How to convert WinLTP ADsweep files to Axon Binary ABF files. A) The SweepFile menu
items to Convert or to Set ABF File Type. B) The Set ABF File Type and Conversion Period dialog box.
C) The Select Many ADsweep Files to Conver to One or Many Episodic or Gap-Free ABF files dialog box.
Fig. 13.1.2 shows the conversion of a single-sweep ADsweep file (viewed in WinLTP) to a single-sweep
episodic ABF file (viewed in Molecular Devices Clampfit, the pClamp analysis program).
