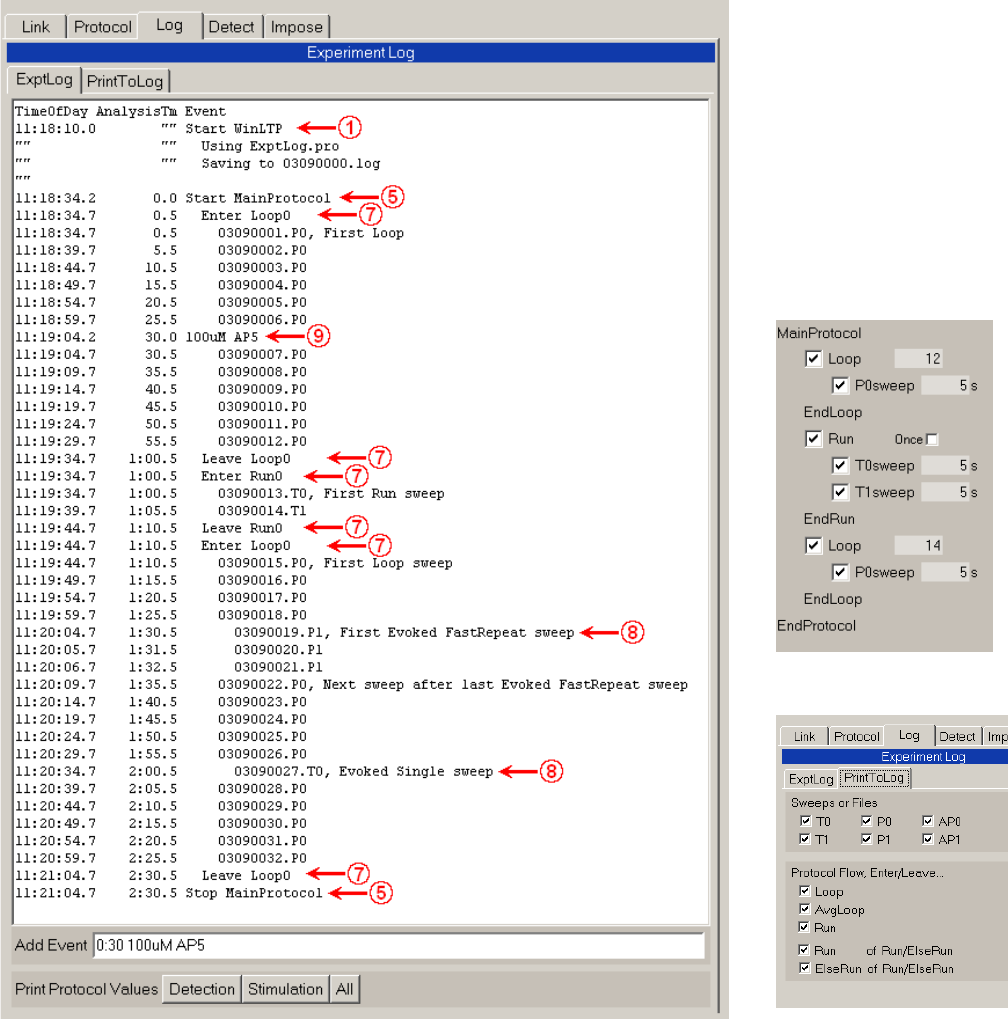

Fig. 11.1.1. Example of an Experimental Log output from an ersatz short protocol. A) This Log specifically

shows: 1) When WinLTP was started, 5) When the Main Protocol was started and stopped, 7) When

there was a change in protocol flow for starting and stopping Loops and Runs, 8) When Evoked Repeat

Sweeps and Evoked Single Sweeps were delivered, and 9) the time (0 min, 30 sec) when a solution

change was manually entered by keyboard input (“0:30 100uM AP5” entered at the Add Event line). LTP

induction stimulation could be caused by the 03090013.T0 and 03090014.T1 sweeps in the Run event,

and by the 03090027.T0 Evoked Single Sweep stimulation, and LTD induction could be caused by the

Evoked Repeat 03090019.P1 to 03090021.P1 Sweeps (actually a few hundred more would be

necessary). Note the ‘Detection’, ‘Stimulation’ and ‘All’ buttons to print protocol values. B) Protocol run

for the Experimental Log in A. C) The PrintToLog tabsheet which determines first, which ADsweeps are

to be printed, and second which Loops, AvgLoops, Runs and Run and Else of Run/Elses to be printed. In

this example, all ADsweeps are chosen to be printed.
