User manual

212
A
B

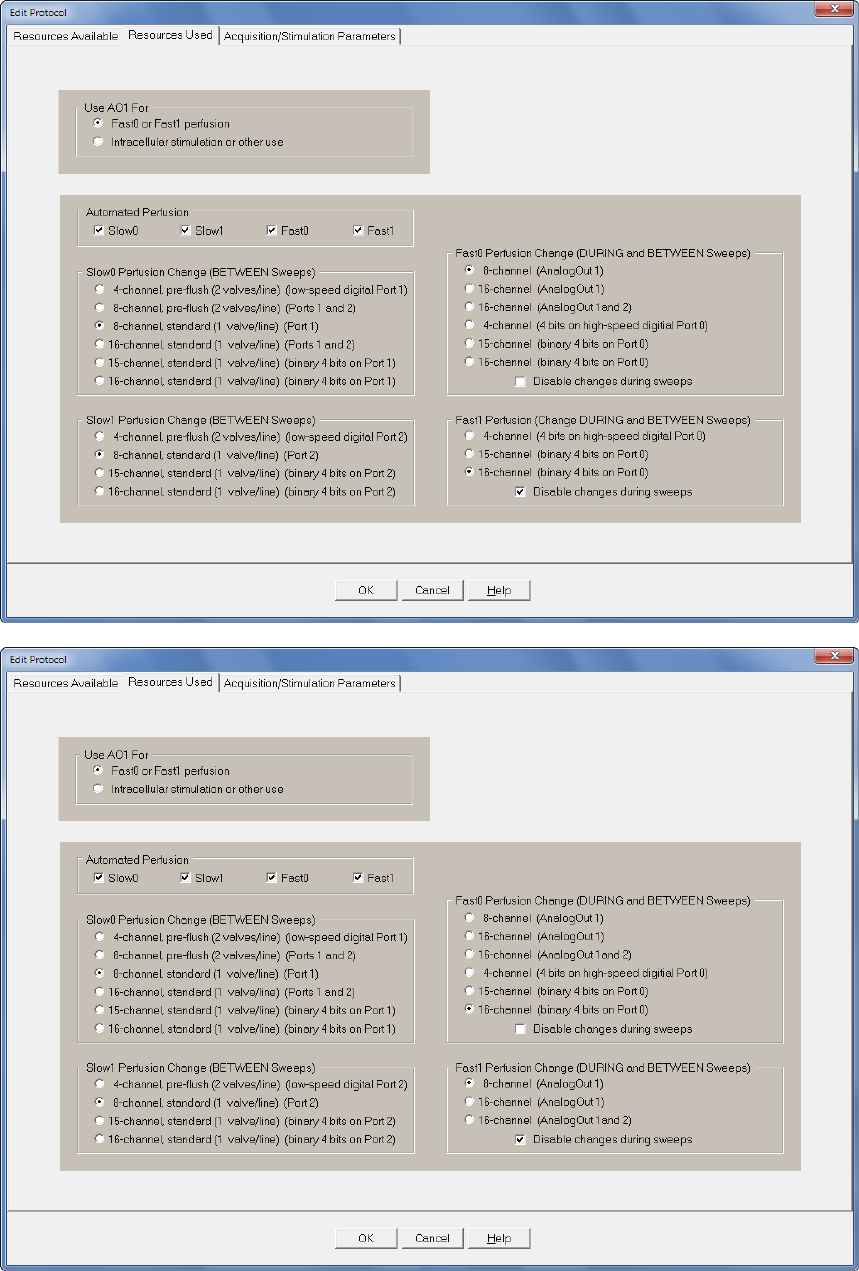

Fig. 10.4.2.2. The ResourcesUsed tabsheet configured to run Triple-Line/Stepper perfusion. AO1 is used
for Fast0 or Fast1 perfusion. All the Slow0, Slow1, Fast0 and Fast1 perfusion checkboxes are checked.
The Slow0 and Slow1 output to valve controllers is digital. In A, the Fast0 output to the stepper is digital 4
bit binary, and the Fast1 output to a valve controller is analog AO1. In B, the Fast0 output to the stepper
is analog AO1, and the Fast1 output to a valve controller is digitial 4 bit binary.
