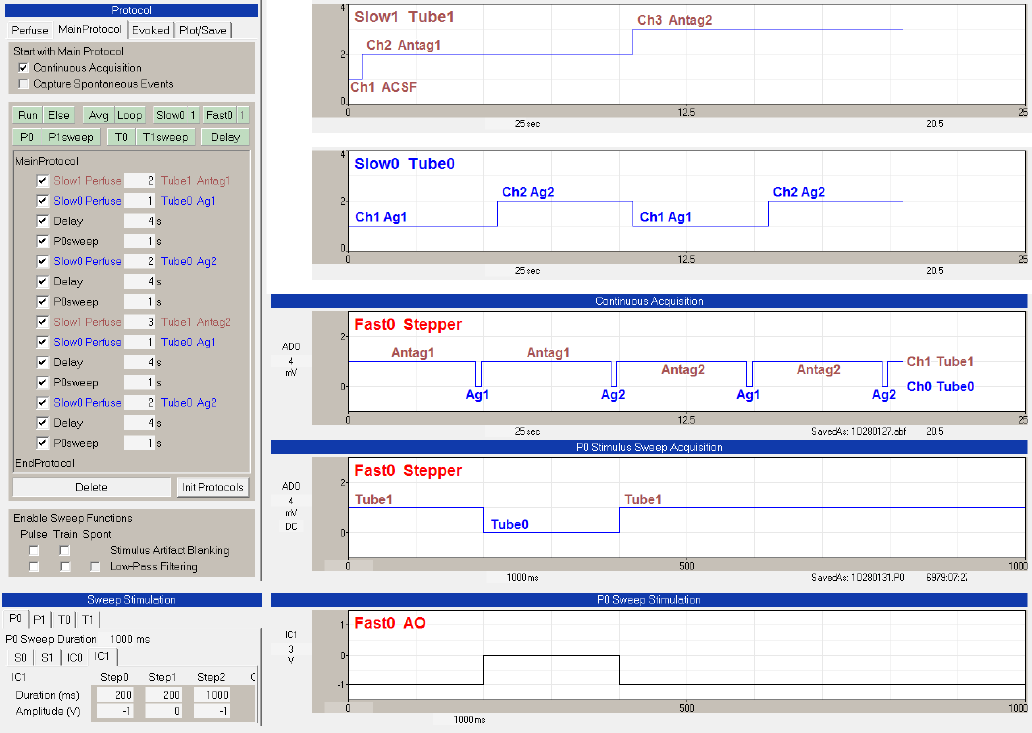

Fig. 10.4.1.4. Running the Dual-Line/Stepper example. The ‘Slow0 Perfuse’ and ‘Slow1 Perfuse’ events
in the Protocol Builder (upper left) show when the Slow0/Tube0 and Slow1/Tube1 solutions are changed.
The upper right panel shows the Slow1 Tube1 switch from ‘Ch1 ACSF’ to ‘Ch2 Antag1’ to ‘Ch3 Antag2’.
The next panel below shows the Slow0 Tube0 switch between ‘Ch1 Ag1’ and ‘Ch2 Ag2’. The ‘Continuous
Acquisition’ and the ‘P0 Stimulus Sweep Acquisition’ panel show recordings of the AO1 voltage shifts
changing to Ch1 Tube1 or Ch0 Tube0. This results in the solutions switching between Antag1, Ag1
Antag1, Ag2, then Antag2 Ag1 Antag2 Ag2. The Sweep Stimulation bottom panels show change of AO1
(ie IC1) voltage output during a sweep. The -1V means to take whatever the current Fast0 output is
BETWEEN sweeps (and when the MainProtocol is off), ie 1V or Ch1.
