solutions for the first, linked second, and linked third protocol files. The Continuous Acquisition panel
shows the output voltage for the third protocol file only.
The log output of this protocol linking experiment is shown in Fig. 10.3.2.2. The starting of
FastProtocol1.pro, FastProtocol2.pro and FastProtocol1.pro, and the switching to Ch2 Antag2 and Ch3
Antag3 are shown by the comments on the right.

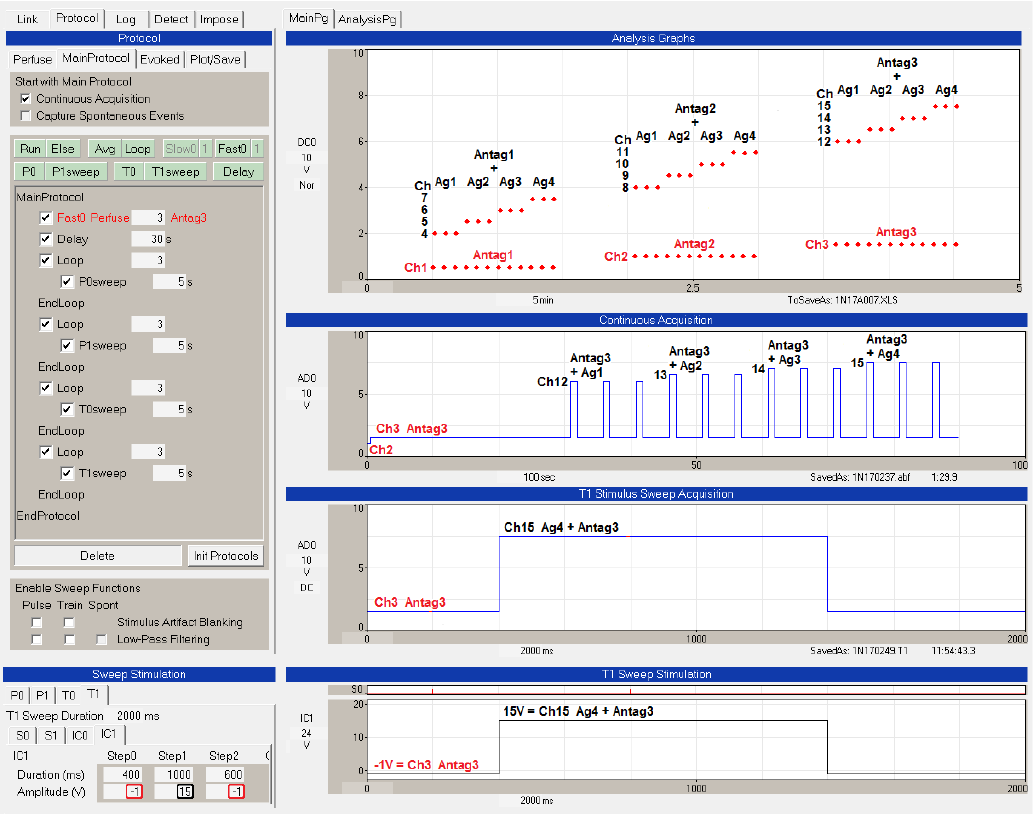

Fig. 10.3.2.1. An example of using Protocol Linking with Fast Perfusion to link 3 different protocol files to
continuously perfuse solutions containing 3 different antagonist concentrations, and momentarily rapidly
apply 4 different agonist concentrations with the different antagonist concentrations - ie apply 15 different
solutions. Uses 16ch AO1 with a Gain of 0.5. To see this connect AnalogOut1 (AO1) to AnalogIn0 (AI0
or AD0).
