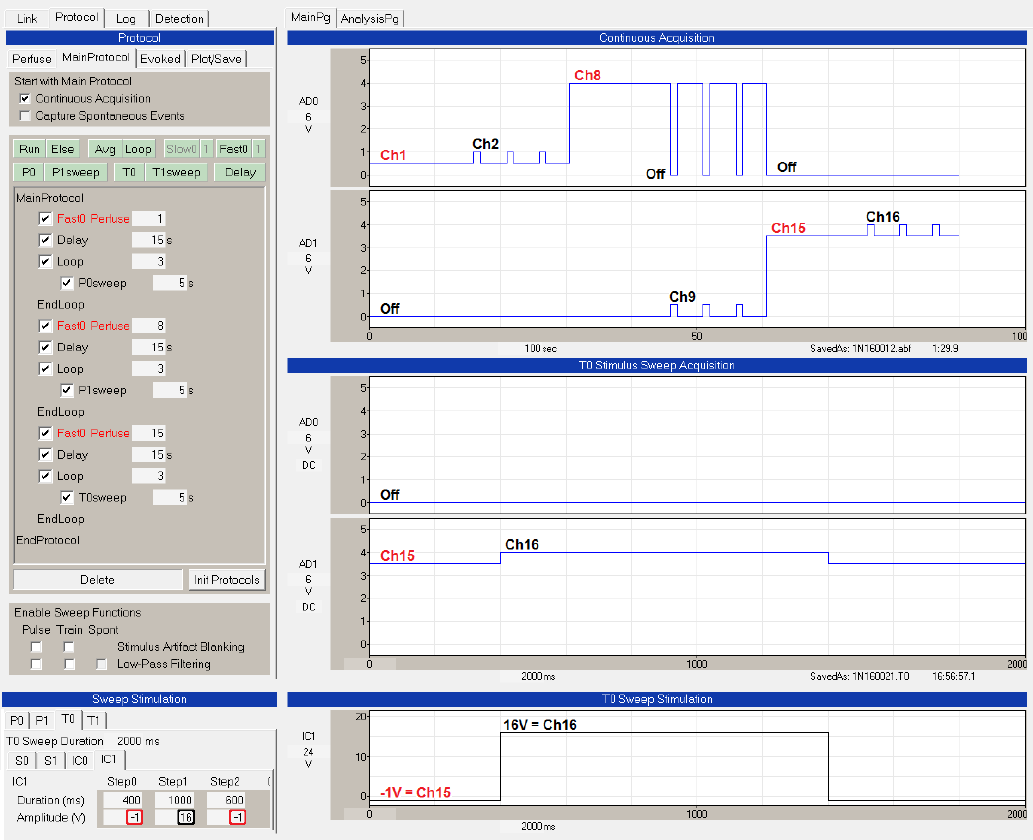

Fig. 10.3.1.2.4. An example of Fast Perfusion Change DURING and BETWEEN Sweeps for controlling
16 channels using two controllers and AnalogOut 1 and AnalogOut 2. When AnalogOut 1 is on,
AnalogOut 2 is off, and vice versa. Channel switches are from Ch 1 to 2, Ch 8 to 9, and Ch 15 to 16.
Note the switchover from AO1 to AO2 for Ch 8 to 9. The Protocol Builder (big panel on left) shows the
Perfuse statement changing to Channel 1, Channel 8 and Channel 15. After each Perfuse statement, a
different sweep (P0, P1, then T0) is output 3 times. Each sweep contains a 1000 msec output of solution
(P0sweep, Ch 2, P1sweep, Ch 9, and T0sweep, Ch 16, right bottom three panels). As shown for the
T0sweep, setting the IC1 Step1 Amplitude (V) to 16 turns on Ch 16 (ie Ch 8 in the second controller)
(bottom panels). AO1 and AO2 Gains are 0.5. To use connect AnalogOut1 (AO1) to AnalogIn0 (AI0 or
AD0), and AnalogOut2 (AO2) to AnalogInput1 (AI1 or AD1).
