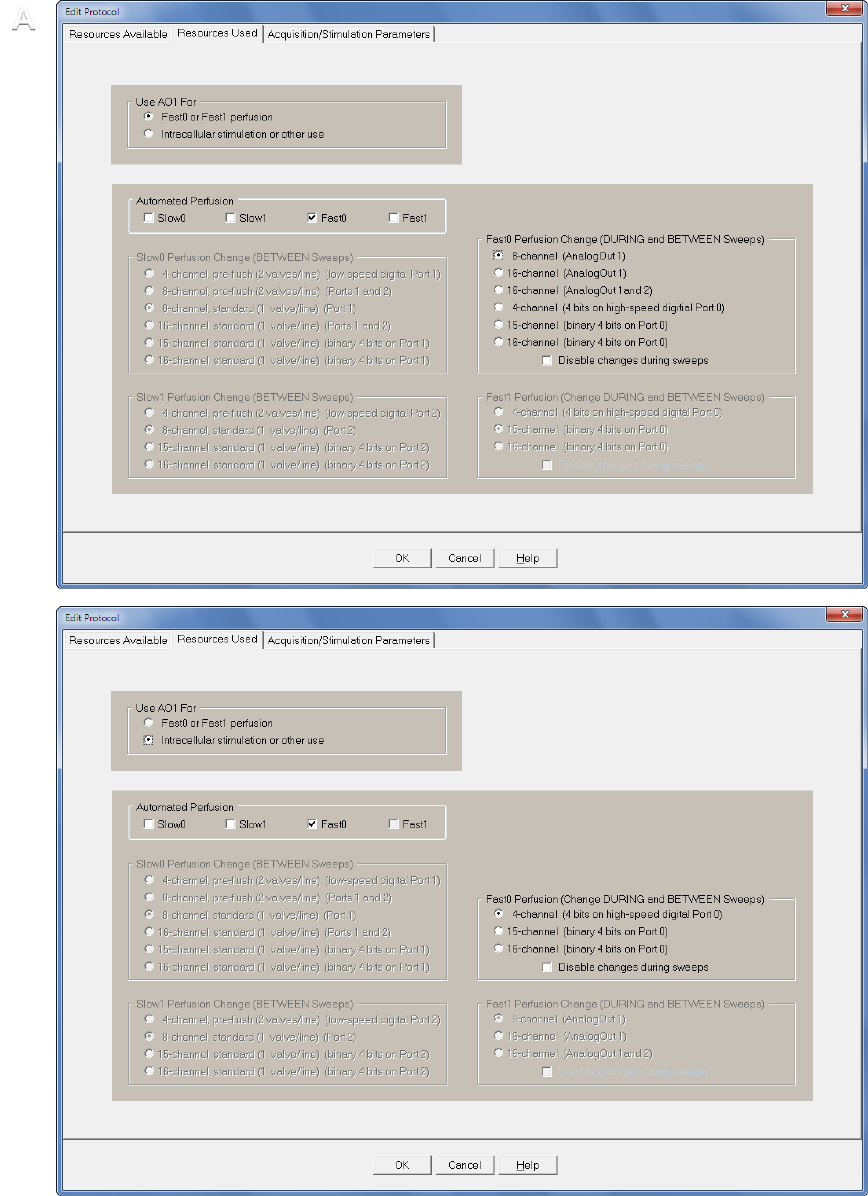

Fig. 10.3.1.2.1. Choosing standard single-line Fast Perfusion in the automated perfusion control
radiobutton group. A) If not using AO1 for anything else, it can be used for Fast Perfusion. If so, you
have a choice of, 8 channels using AnalogOut 1, 16 channels using AnalogOut1, 16 channels using
AnalogOut1 and AnalogOut2, or 4 channels controlled by 4 bits on the high-speed digital output Port 0, 15
channels using 4 bits Port 0 where if all the bits are off, all channels are off, or 16 channels using 4 bits
Port 0 where if all the bits are off, Channel 1 is on. B) If AO1 is used for something else, Fast0 Perfusion
can use the three digital output choices.
