User manual

187
A
B

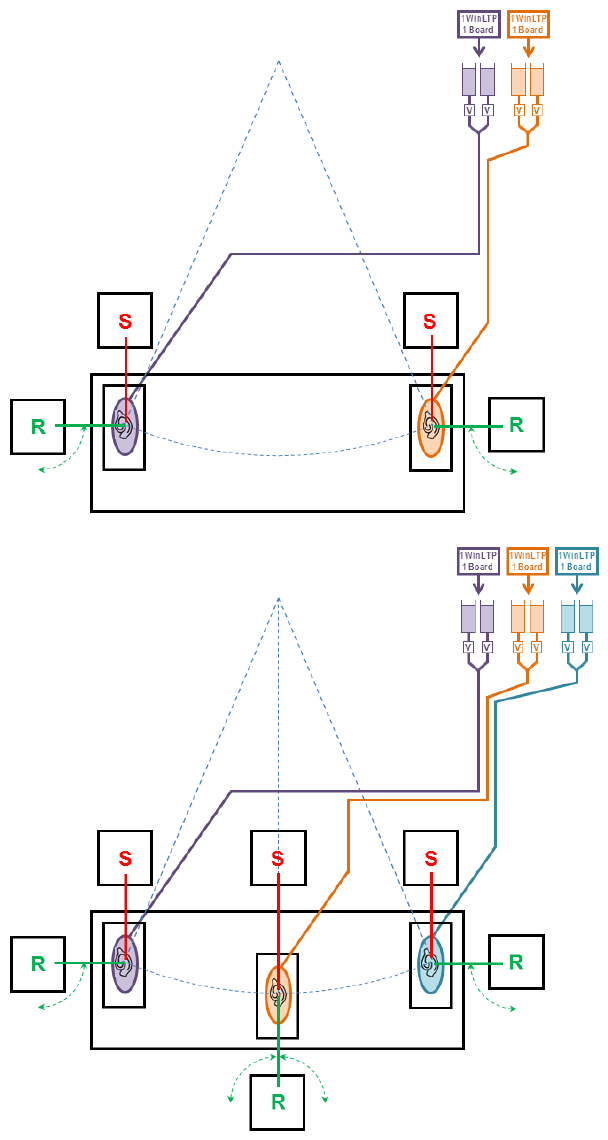

Fig. 10.2.9.1. Perfusion layout for using 1 animal. A) 1 animal, 2 wells, 2 chambers. B) 1 animal, 3 wells,
3 chambers. Each chamber has separate perfusion and control by WinLTP/ADboard. The ‘S’s represent
stimulating electrodes and manipulators, and the ‘R’s represent recording electrodes and manipulators.
Note that no pump is required if there is only one chamber per perfusion line.
