User manual

158
Because the Run Once box has been checked, the T0sweep/T1sweep code in the Run construct will run
only once, and the large check box on the Run line will automatically become unchecked once the
T0sweep code has started to run.

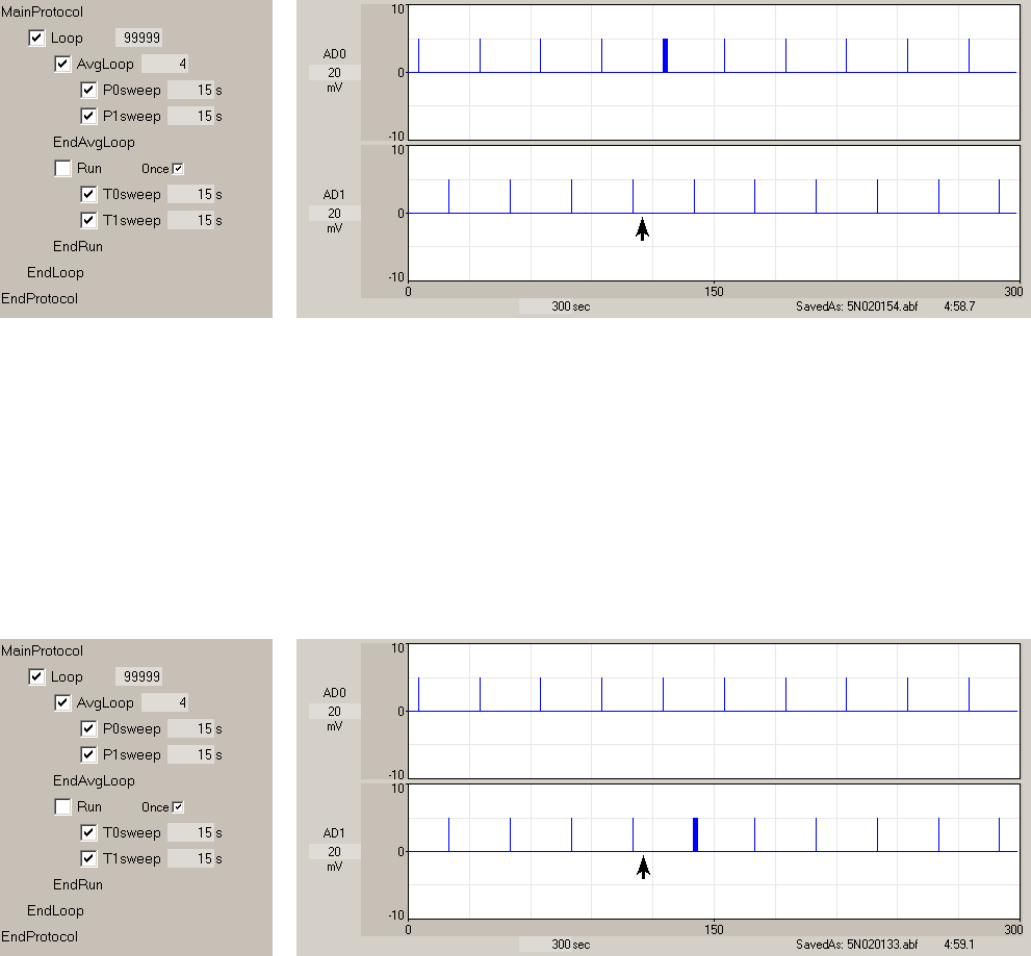

Fig. 7.4.9.1. One type of LTP induction using code in a Run line that does not disrupt the single pulse
P0/S0 and P1/S1 pulses. At the up arrow, the large check box on the Run line is checked to run the
T0/T1 sweep code once.
If the same protocol is used as in Fig. 7.4.9.1, but instead of T0sweep having 100 S0 pulses and
T1sweep having one S1 pulse, if T0 sweep has 1 S0 pulse and T1sweep has 100 S1 pulses, then
clicking on the large check box of the Run line runs a single S0 pulse followed by an S1 train, but again
P0/S0 and P1/S1 pulses are not disrupted (Fig. 7.4.9.2).
Fig. 7.4.9.2. The same type of LTP induction as in Fig. 7.4.9.1 using code in a Run line that does not
disrupt the single pulse P0/S0 and P1/S1 pulses, except T0 sweep has 1 S0 pulse and T1sweep has 100
S1 pulses. At the up arrow, the large check box on the Run line is checked to run the T0/T1 sweep code
once.
7.4.10 Alternative LTP Stimulation #2 using the Run/ElseRun Construct
A different type of LTP train stimulation during signal averaging is shown in Fig. 7.4.10.1 where the
P0sweep/S0 and P1sweep/S1 pulse output is not disrupted, but a T0sweep with S0 train is run half way
