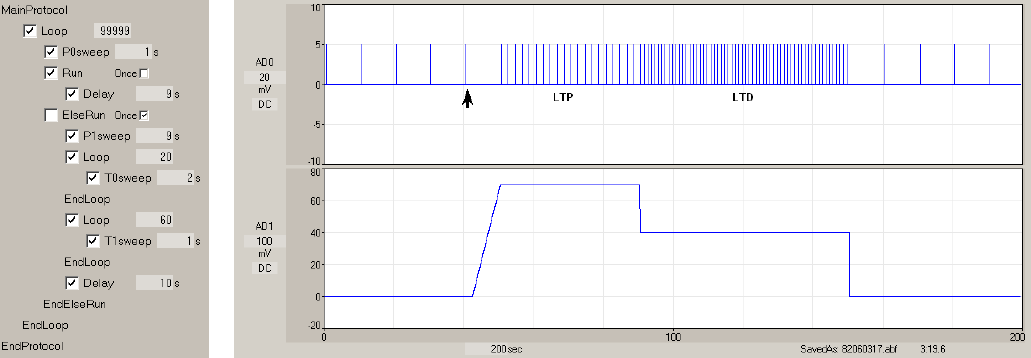

Fig 7.4.5.1. LTP/LTD Stimulation with Associated Steady Depolarization when the Run Once checkbox is
checked. LTP/LTD stimulation was started by clicking the large check box on the Run line (up arrow) and
ran only once. Initially there is a slow 9 sec depolarizing ramp in P1sweep. S0 is recorded in AD0 and
intracellular stimulation voltages (AnalogOut0) is recorded in AD1. P0/T0/T1 sweeps have S0 single
pulse stimulation. T0sweep has steady 70 mV depolarization and T1sweep has steady 40 mV
depolarization.
7.4.6 Continuing Low Frequency Stimulation During Rapid LTD Stimulation
using Run Once
Fig 7.4.6.1 shows a protocol where when the large check box on the Run line is checked, this produces
an S0 train to induce LTP followed by rapid S1 1Hz LTD stimulation but with continuing S0 low frequency
(1/30sec) stimulation. P0 sweep contains one S0 pulse, P1sweep contains one S1 pulse, T0sweep
contains a 2 sec S0 train, and T1sweep contains both a single S0 pulse and a single S1 pulse.
Because the Run Once box was checked, the code within the Run construct ran only once, and the large
check box automatically became unchecked one the code within the Run construct started.
