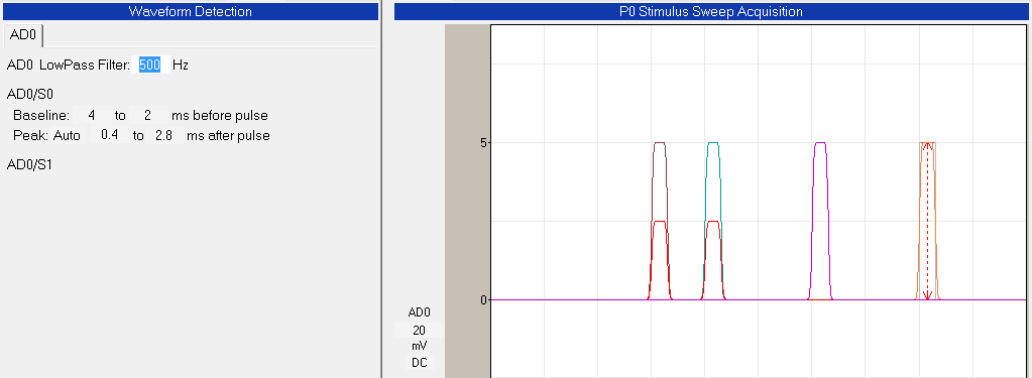

Fig. 5.5.1. Changing the low pass filtering value for channel AD0 in the Waveform Detection panel from
200 Hz (Figs. 5.1.1 through to 5.4.2) to 500 Hz here changed the filtering of all the Viewed (magenta
trace), the single Imposed (brown, cyan and orange traces) and the Averaged/Imposed (red trace)
Sweeps, as well as the underlying Current Acquired Sweep’s low-pass filtered trace (underlying the
orange trace). The sweep duration is 100 msec. Compare this with the 200 Hz low-pass filtered traces in
Fig. 5.4.1.
