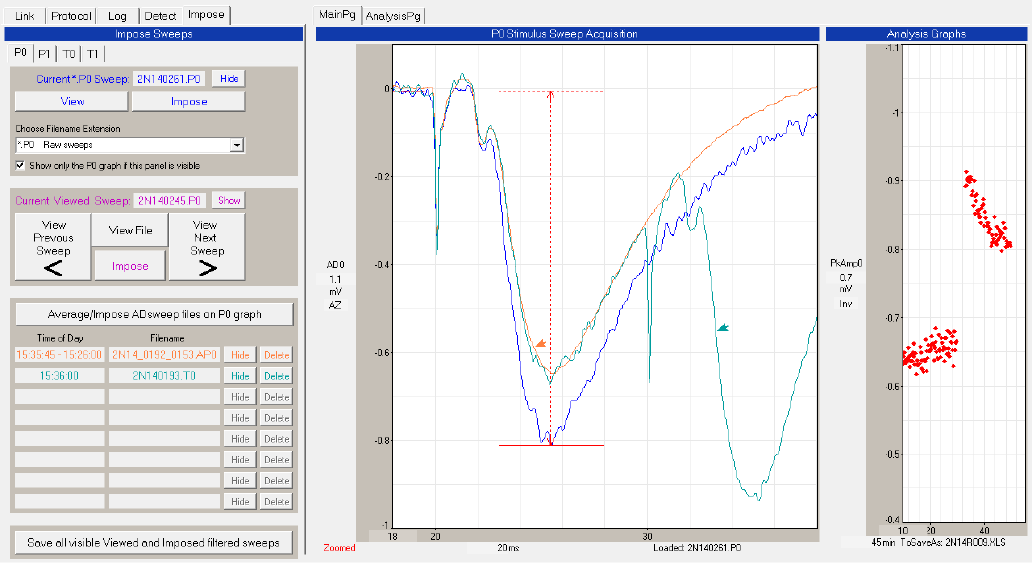

Fig. 5.4.2. Imposing averages of sweeps for 10 min before an LTP inducing theta burst stimulation. The
40 sweeps averaged in the 10 min before stimulation are shown by the orange trace (and arrow) and by
the orange Imposed ‘Time of Day’ and ‘Filename’. The blue trace is the last sweep acquired. The single
T0 sweep imposed shown by the cyan trace (and arrow) and by the cyan Imposed ‘Time of Day’ and
‘Filename’ is only the first two pulses of a 2 second theta burst stimulation sweep. The View Sweep is
hidden. All traces have been low-pass filtered to 2 KHz.
5.5 Changing Filtering Affects All Viewed and Averaged/Imposed
Sweeps
When the low-pass filtering value of a particular AD channel is changed, the amount of low-pass filtering
on the current sweep low-pass filtered trace and on all the Viewed, Imposed and Averaged/Imposed
Sweeps are simultaneously changed for that AD channel changed, and also in all the P0, P1, T0 and T1
sweeps.
When the amount of low-pass filtering is changed by changing the ADx LowPass Filter field in the
Waveform Detection panel (left side of Fig. 5.5.1), the current ADsweep low-pass filtered trace and the
low pass filtering of all the Viewed, Imposed and Averaged/Imposed Sweeps are simultaneously changed
for the AD channel changed.
