A Extrapolate Back to TimeZero
B Extrapolate Back 0.05ms from Rs/Rm Pulse Start
C No extrapolation, fit to Rs Peak time D Analyze at Rs Peak

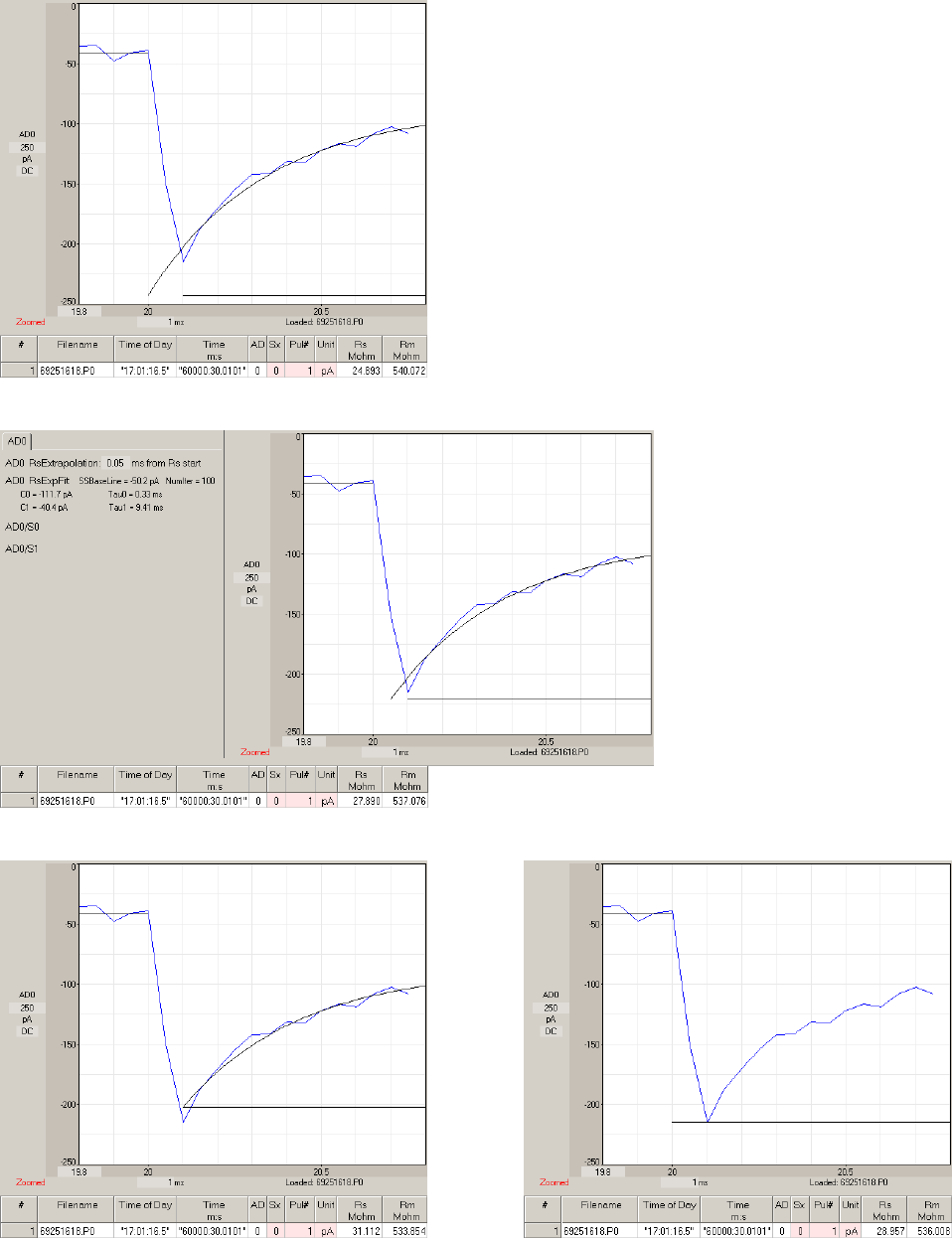

Fig. 4.11.11.4. The effect of different extrapolation times toward TimeZero on Rs measurements. All fits
were double exponential and on the same cell as in Fig 4.11.11.3. A) Extrapolate back to start of the
Rs/Rm pulse, TimeZero; Rs = ~25 Mohm. B) Extrapolate back to 0.05ms after start of the Rs/Rm pulse;
Rs = ~28 Mohm. C) No extrapolation back from Rs peak time; Rs = ~31 Mohm. D) Rs measurement
