AXIST90BSeries

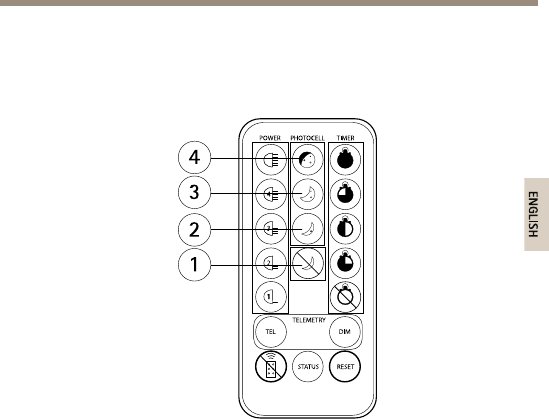

Therearethreepre-denedlevelstosettheluxlevelthresholdatwhich
thephotocellturnstheilluminatoronoroff.Selecttherequiredsensitivity
levelbyusingthebuttonsbelow.
1
2
3
4
1
Photocelldisabled
2
5LuxOn,15LuxOff
3
10LuxOn,30LuxOff
4
25LuxOn,50LuxOff
TelemetryInput
Thetelemetryinputwires(orangeandpurple)aredesignedtobeused
witharemoteswitchorinputfromanalarmsystem,PIRdetector,control
room,videomanagementsystemorcameraoutput.Theinputsignalcan
bevolt-freeorTTL.
