User's Manual

Stealth Repeater

- QSG

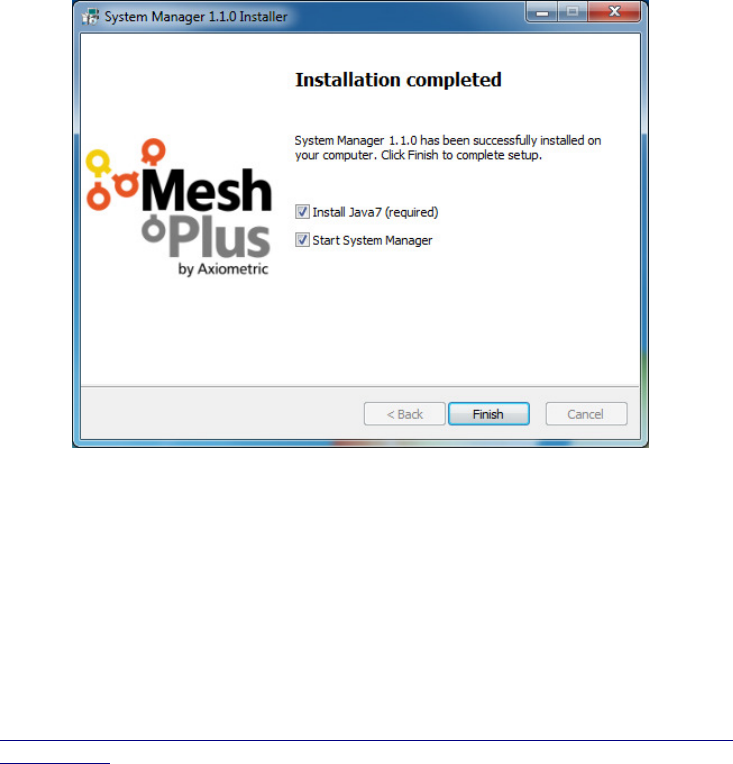

When installation is complete, the installer will start System Manager by default; you can

un-check this option if you do not wish to start System Manager now. On some systems,

Windows may require a reboot to make the newly installed USB drivers operational.

Windows 64-bit Java Installation

Windows 64-bit edition requires a special 64-bit version of the Java Runtime

Environment (JRE) to be installed. Java 7 32-bit (i586) and 64-bit (amd64) are included

on the MeshPlus Software CD/DVD and can also be downloaded directly from Oracle

here:

http://www.oracle.com/technetwork/java/javase/downloads/java-se-jre-7-download-

432155.html

To install from the MeshPlus Software CD/DVD, select “Install Java 7 (64-bit)” from the

CD/DVD menu or you can directly run the program jre-7-windows-x64.exe.

Connect to Mesh

In order to connect to the rest of the mesh, a simple operation must be done. At the

bottom right corner on the Stealth Repeater there are buttons. Press the one labeled

“Connect”, in doing this a green light will be lit in the upper right corner. If it is blinking that

means it is finding the mesh. If it stops blinking and stays lit that means that the mesh

was found. When you have clicked the “Connect” button it sends a message to all AC

powered electronics to connect the Stealth Repeater to the mesh.
