AXICOM
Signal
Signal Relays
D2n* Relay V23105 (Continued)

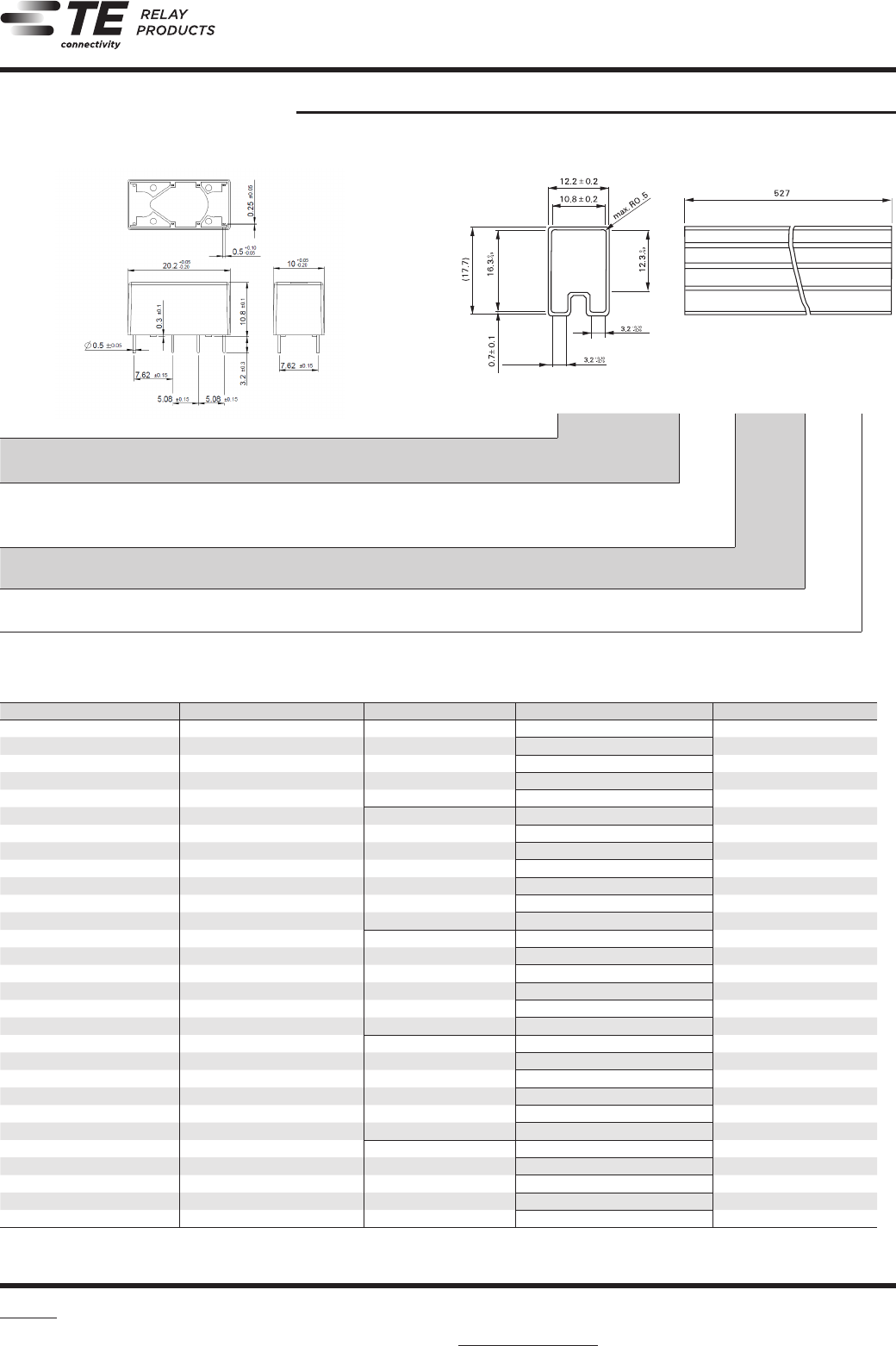

Dimensions Packing
Product code structure Typical product code V23105-A5 001 A201 *
Type
V23105-A5 D2n Series Signal Relay
Coil
Coil code: please refer to coil versions table
0xx 150 mW 4xx 400 mW
3xx 200 mW 5xx 550 mW
Contacts
A201 2 from C, 2 CO, AgNi-Au contacts
* Version re-designed
Product code Version Coil power Coil voltage Part Number
V23105A5001A201* AgNi+Au 150mW
5VDC
8-1393792-5
V23105A5002A201* contacts 6VDC 8-1393792-7
V23105A5006A201* 9VDC 9-1393792-1
V23105A5003A201* 12VDC 8-1393792-8
V23105A5005A201* 24VDC 9-1393792-0
V23105A5308A201*
200mW
3VDC 1393793-5
V23105A5301A201* 5VDC 9-1393792-3
V23105A5302A201* 6VDC 9-1393792-5
V23105A5306A201* 9VDC 1393793-2
V23105A5303A201* 12VDC 9-1393792-7
V23105A5305A201* 24VDC 9-1393792-9
V23105A5307A201* 48VDC 1393793-3
V23105A5401A201*
400mW
5VDC 1393793-6
V23105A5402A201* 6VDC 1393793-7
V23105A5406A201* 9VDC 1-1393793-0
V23105A5403A201* 12VDC 1393793-8
V23105A5405A201* 24VDC 1393793-9
V23105A5407A201* 48VDC 1-1393793-1
V23105A5501A201*
>500mW
5VDC 1-1393793-6
V23105A5502A201* 6VDC 1-1393793-8
V23105A5506A201* 9VDC 2-1393793-3
V23105A5503A201* 12VDC 1-1393793-9
V23105A5505A201* 24VDC 2-1393793-1
V23105A5507A201* 48VDC 2-1393793-4
V23105A5475A201*
BT 47 type
5VDC 1-1393793-2
V23105A5479A201* spec T4563C 10VDC 3-1393794-0
V23105A5476A201* (current tested) 12VDC 1-1393793-3
V23105A5477A201* 24VDC 1-1393793-4
V23105A5478A201*
48VDC
1-1393793-5
