6 Monitoring and Troubleshooting

The D-MBR 3007-3008-PS-NFPA provides two types of indications of failure:

• Front panel LED

• Alarms screen in Web access application

• Alarms Log – used to view a record of past generated alarms

The following sections provide a description of the troubleshooting procedures according

to the Alarms and log options.

6.1 Front Panel LED

The repeater supports ONE status LED on its front panel. The LED color and steady or

blinking status reflects system status (normal or faulty) and fault level as described in

this section.

NOTE: The NFPA unit is colored RED.

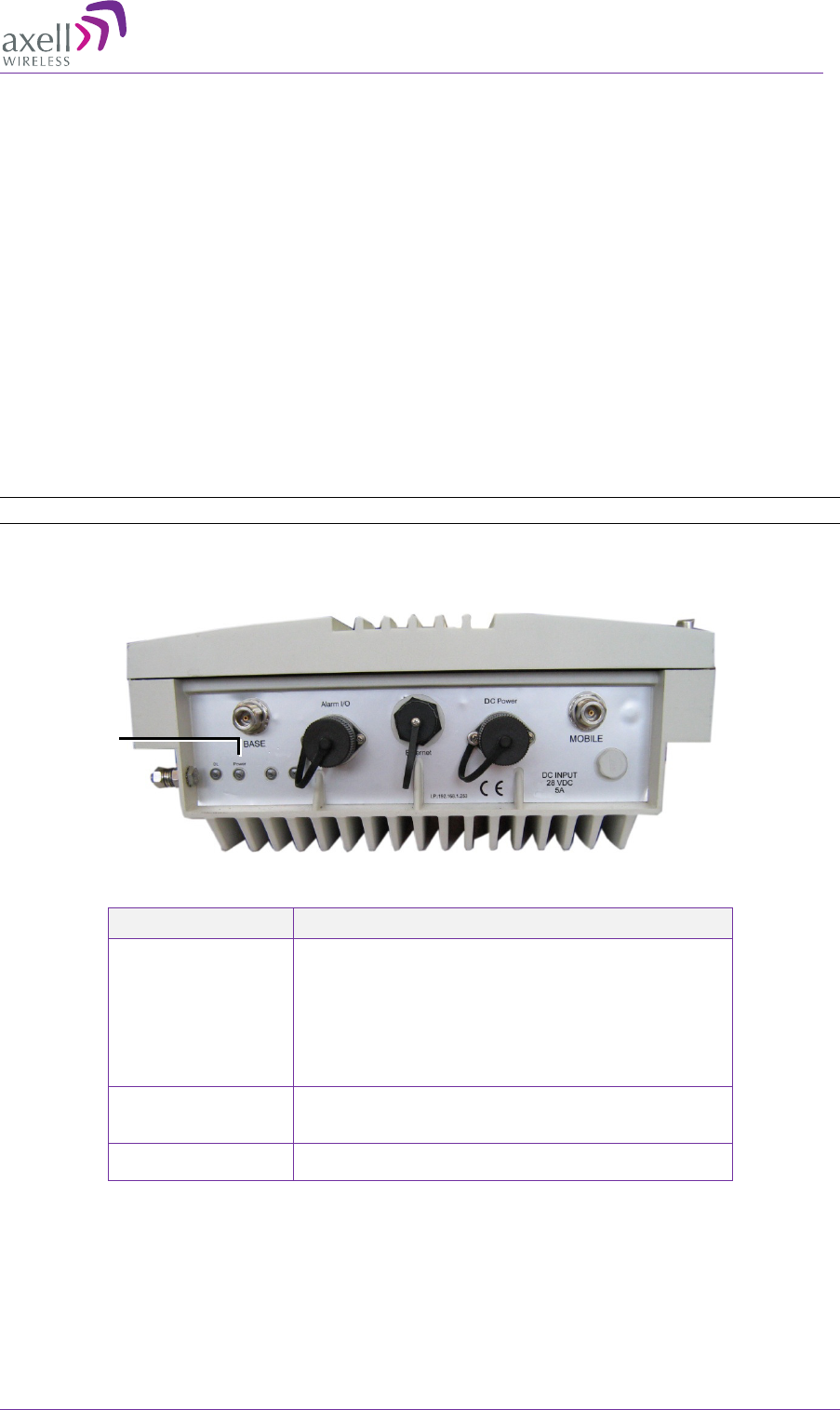

6-1. Axell D-MBR 3007-3008-PS NFPA Front Panel Interfaces

LED color

Description – section 6.2.

Red

• System Mute

• User Mute

• PAmp Current

• Temperature High Level

• Built in test

Orange

RSSI DL

VSWR(DL&UL)

Blinking green Power Below Threshold

LED (only

one LED is

relevant)
