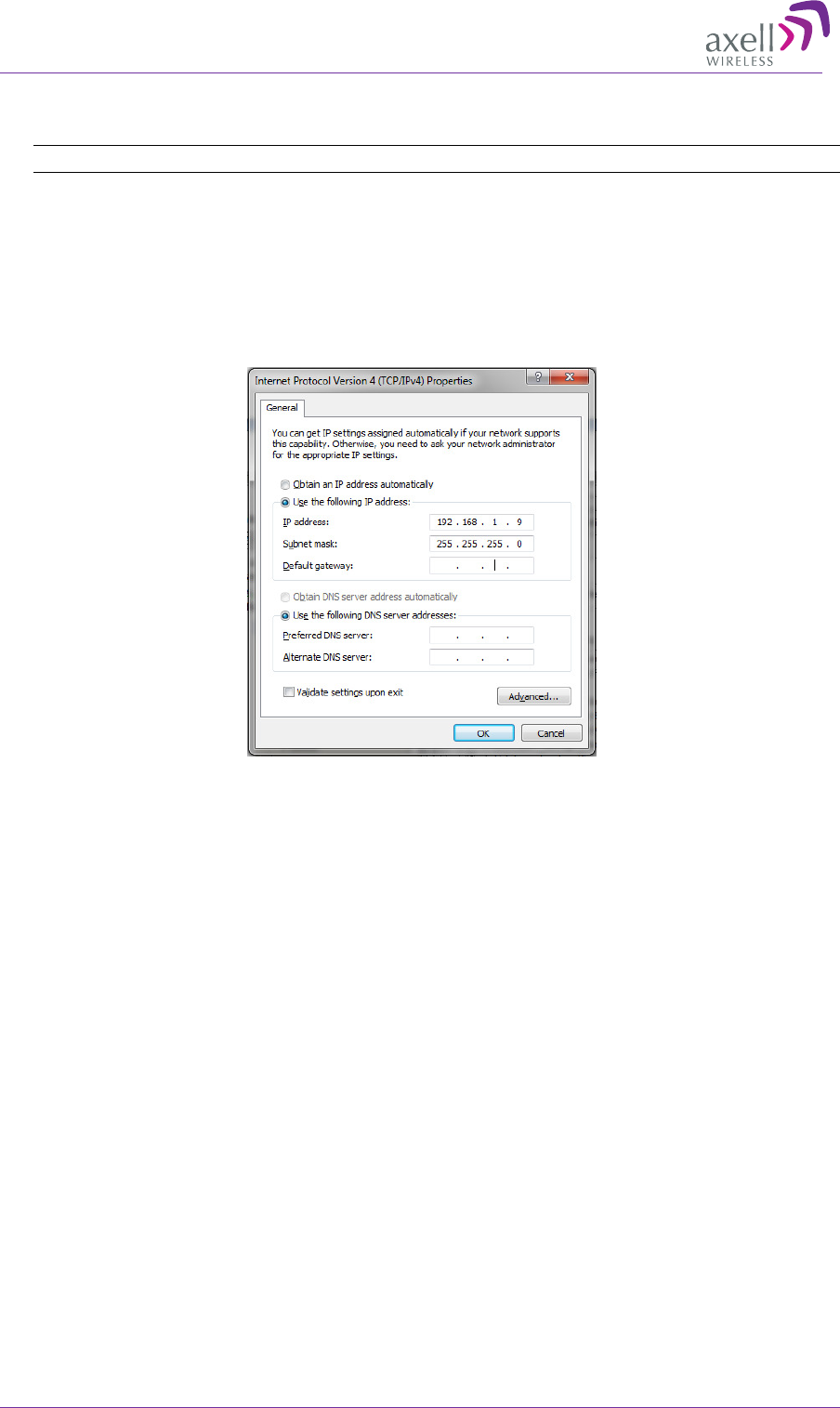

5. In the Items list, double-click Internet Protocol Version 4 (TCP*IPv4) item. The
Internet Protocol Version 4 (TCP/IPv4) Properties dialog appears.
Note: The Repeater is supplied with the default IP address 192.168.1.253.
6. Assign your computer an IP address in the same subnet, in order to communicate
with the unit.
• In the IP address area:
• Enter the IP address 192.168.1.x, where ‘x’ can be any number between 2 and
250 inclusive. For example, (192.168.1.9)
• Define the subnet mask as shown (255.255.255.0)
o Click OK. The computer communication parameters are now defined
and you can open a session to the Repeater.
