User's Manual

Axell D-MBR 3007-3008-PS-NFPA
PRODUCT DESCRIPTION AND USER’S MANUAL
© Axell Wireless Ltd UMCD00013 Rev 2.2 27
4.1.2 Configure the Computer Network Parameters
Configure the computer network parameters to communicate with the Repeater. Note
that the procedure may vary slightly depending on the operating system installed on
your computer. The following procedure is for Windows 7 OS.
To configure the computer’s network parameters:
1. Click the Start menu and choose Control Panel.
2. In the Control Panel, click Network and Internet Connections.
3. Click Network and Sharing Center and then click Local Area Connection.

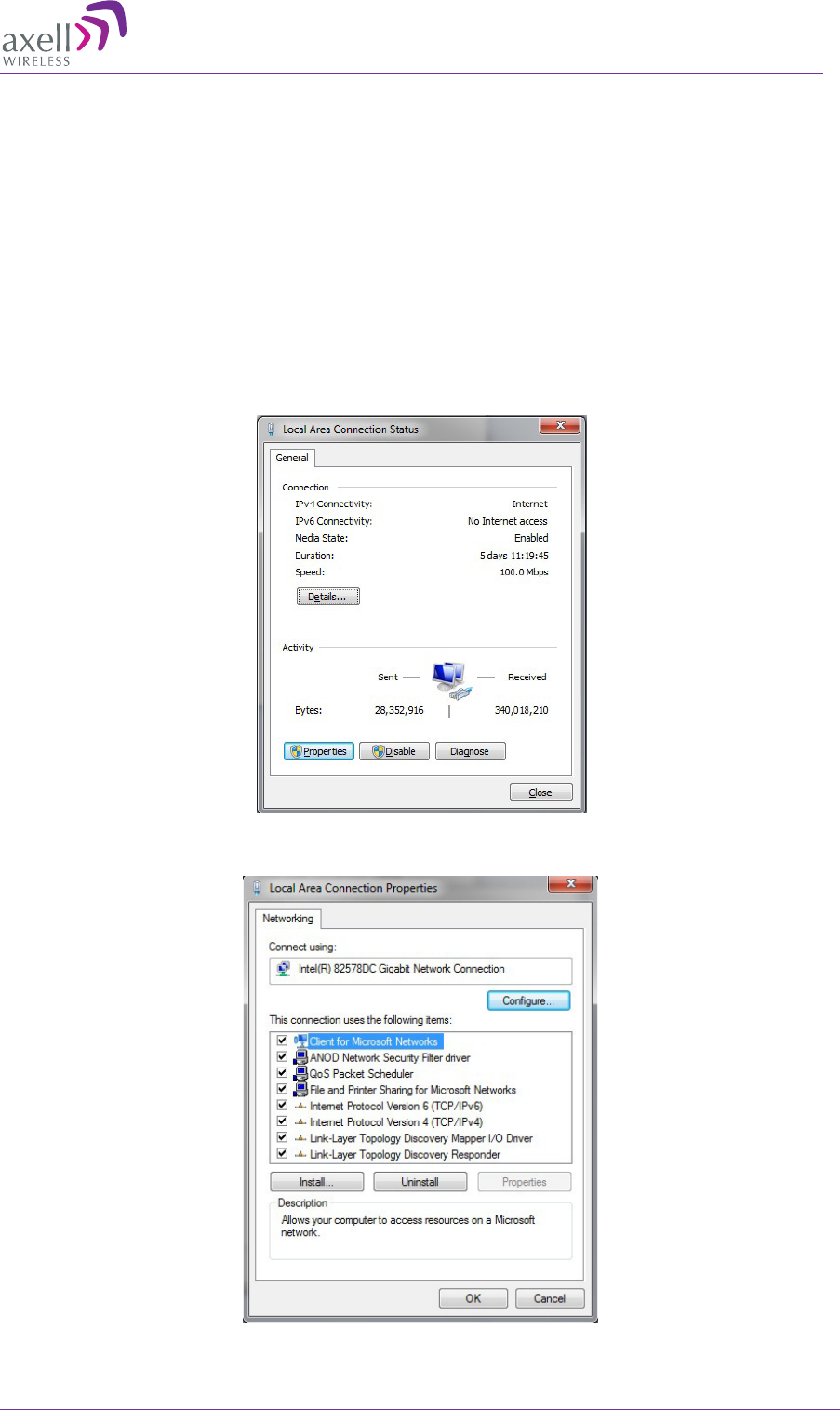

The Local Area Connections Status dialog appears with the General tab displayed
by default.
4. Click the Properties button in the displayed Local Area Connection Status dialog.
