4 Initial Setup and Commissioning
This section describes the setup procedures for the D-MBR PS Repeater. The initial setup
procedure is performed through a Web connection from a computer on the same subnet,
using a cross-over Ethernet cable (supplied).
The setup procedure consists of the following steps:
1. Open a local Web session to the Repeater (this requires configuring the
communication parameters of the computer used).
2. If you are not familiar with the Axell Web Access application, we suggest you quickly
review the section on Navigating the Web GUI Application. It is only a couple of
pages and you will find it useful.
3. Define the Global Settings for each of the supported bands, and determine the
number of filters assigned to each band.
4. Enable and configure the relevant channels (Filter Switch tab).
5. Verify that no Alarms are generated.
6. Set the Repeater time and date.
7. Configure the external alarms.
8. (If relevant), configure the System IP Address.
4.1 Open a Session to the Repeater
4.1.1 Connect the Repeater to the Computer
To open connect the Repeater to the Computer
Connect the Ethernet cable (supplied) between the front panel Ethernet port (see
figure below) and the computer Ethernet port.
Note: When performing a local connection, use the supplied Ethernet cross-cable (PN: 1579909499).

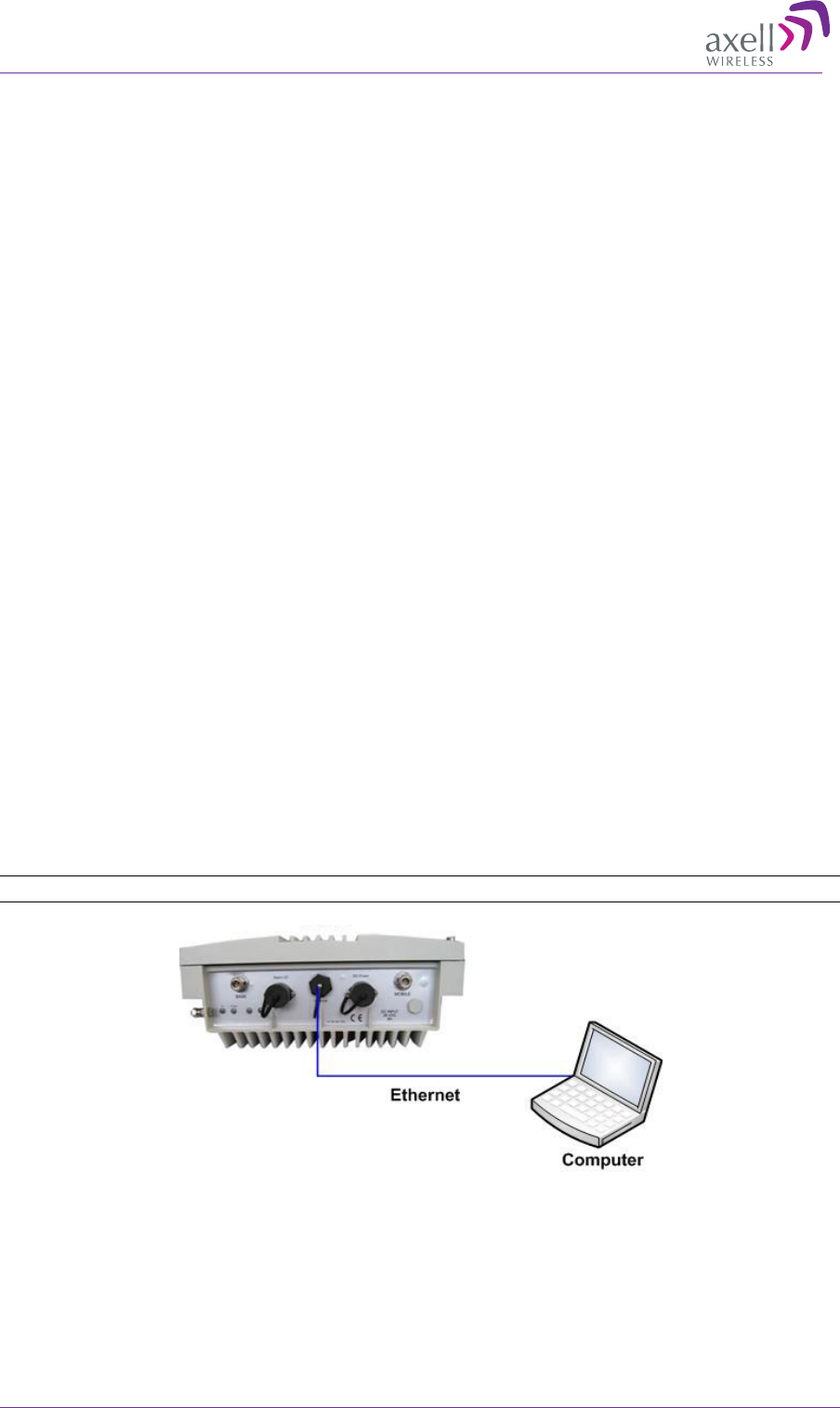

Figure 4-1. Connect Computer to Repeater via Ethernet
