3.8 Powering Up the D-MBR
NOTE: The Repeater is connected to power via the assembled AC/DC power supply.
WARNING!
This equipment can either be installed indoors or outdoors.
When installing outdoors - Wet conditions increase the potential for electric shock
when installing or using electrically powered equipment.
To prevent electrical shock when installing or modifying the system power wiring,
disconnect the wiring at the power source before working with un-insulated wires or
terminals.
3.8.1 Standard Power Connection
Power-on the Repeater by:
• Connecting the cable from the AC/DC converter to the front panel DC Power
port.
• Connecting the AC/DC converter power cable to the AC outlet.

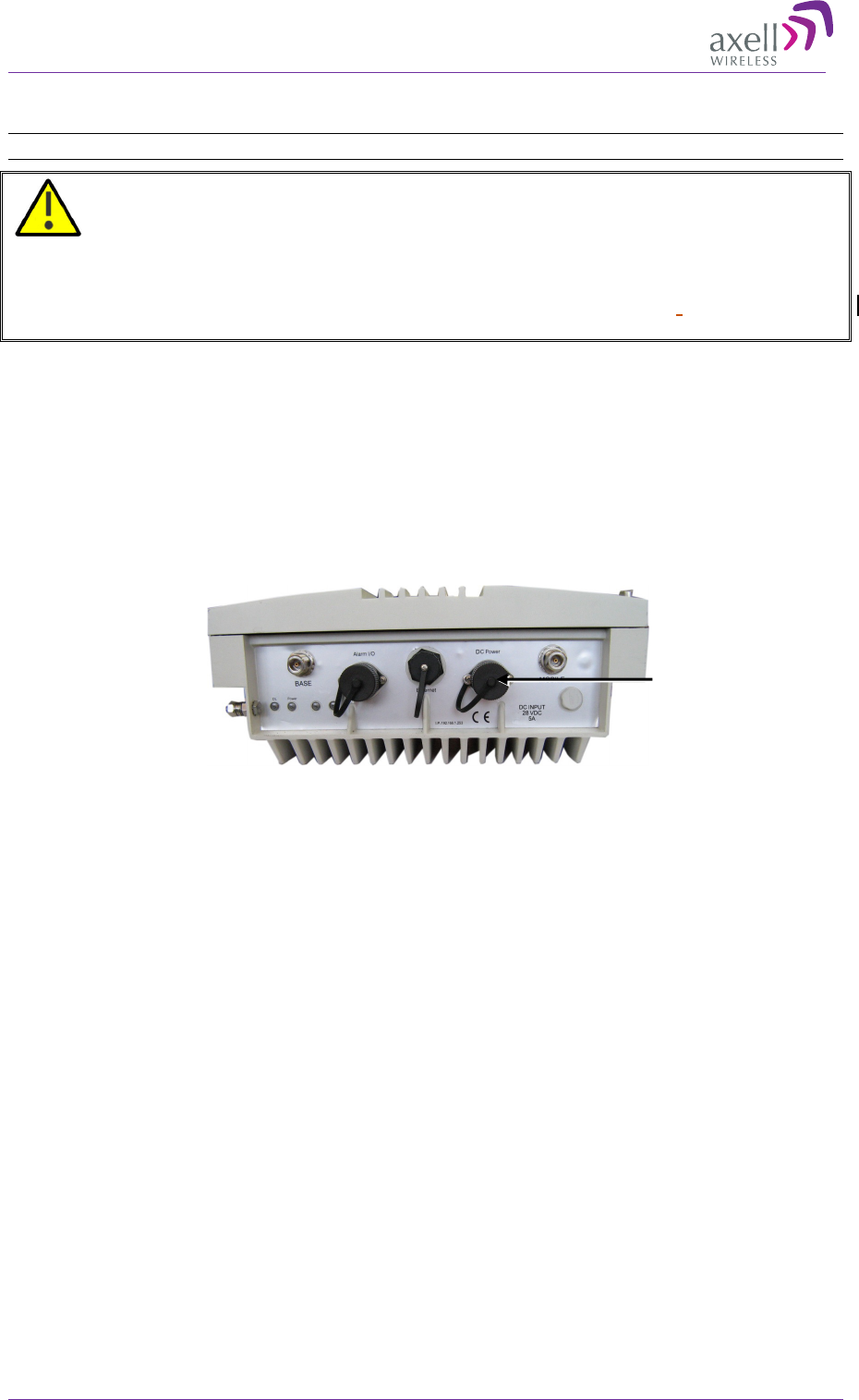

Figure 3-9. DC Power Input Connection Location
DC Input connection
from system AC/DC
Converter
