2.2.3.2 Vertical Separation Configuration
The Vertical Separation configuration is recommended in cases where the BTS is
relatively far and the service coverage area is relatively small.
In Vertical Separation configuration, the Donor antenna can be installed either above or
below the Service antenna on a COMMON tower. It is required to set the distance
between them to achieve maximum isolation.
The figures below illustrate the installations.

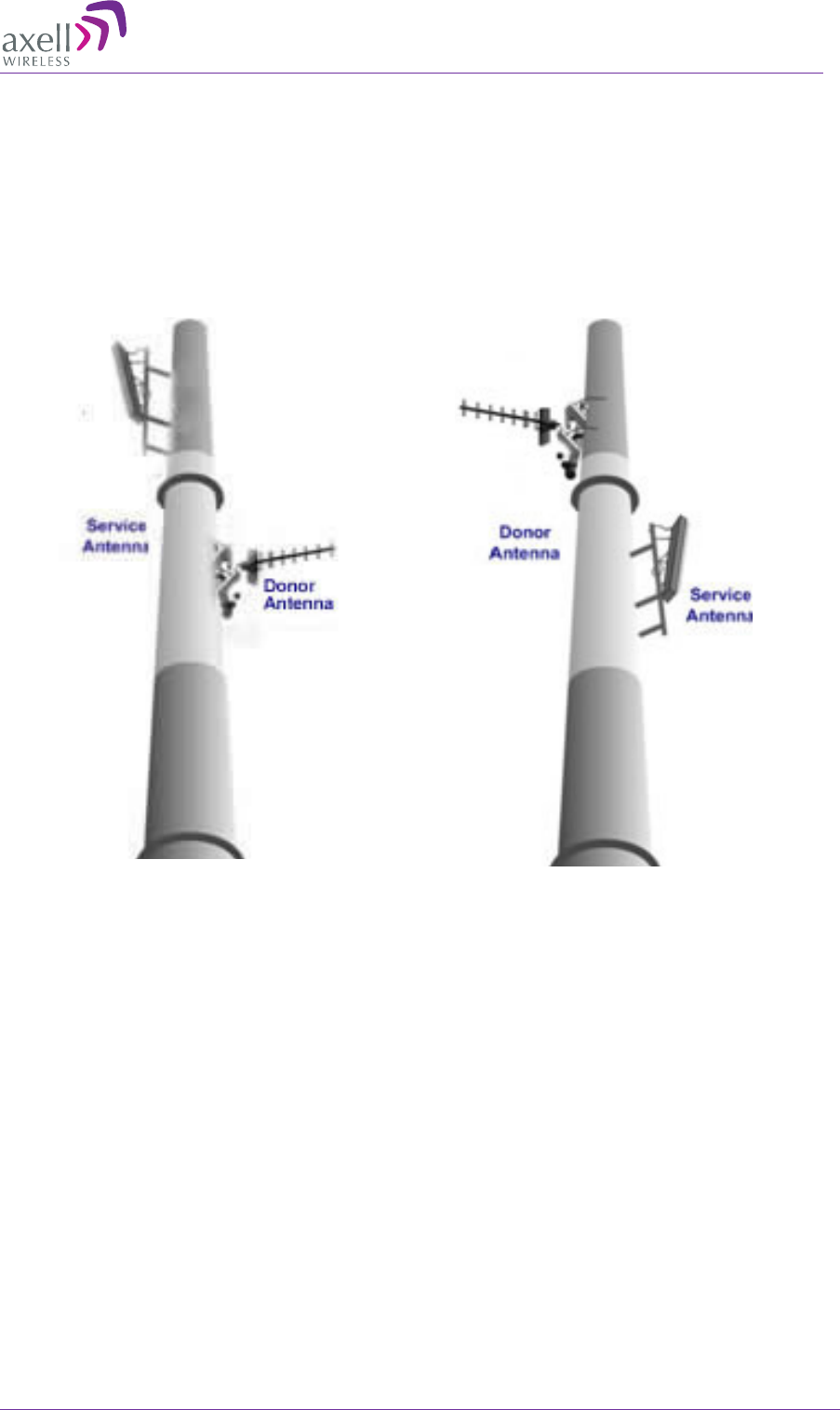

Figure 2-1. Service above Donor Antenna Figure 2-2. Donor above Service Antenna
