User's Manual

AXELL D-MBR 3007-3008-PS NFPA REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
4 UMCD00013 Rev 2.2 © Axell Wireless Ltd
1.4 Smart-ALC Function
The Repeater’s power amplifier includes power-monitoring circuits with Automatic Level
Control (ALC) that prevents excessive output power while maintaining the power
amplifier linearity
The Smart Automatic Level Control (Smart-ALC) is an innovative algorithm for
automatic Repeater gain adjustment. Combined with advanced control algorithms, S-
ALC is capable of learning the traffic load characteristics and adjusting the Repeater RF
Gain to the desired value. Smart-ALC effectively reduces isolation problems.
NOTE: To reset the Repeater to its highest set gain value, disconnect the Repeater power cable for
several seconds and re-connect.
1.5 Interfaces
All the Repeater interfaces are located on the units’ underside panel. The following
figure shows the interfaces on the D-MBR.
NOTE: The NFPA unit is colored RED.

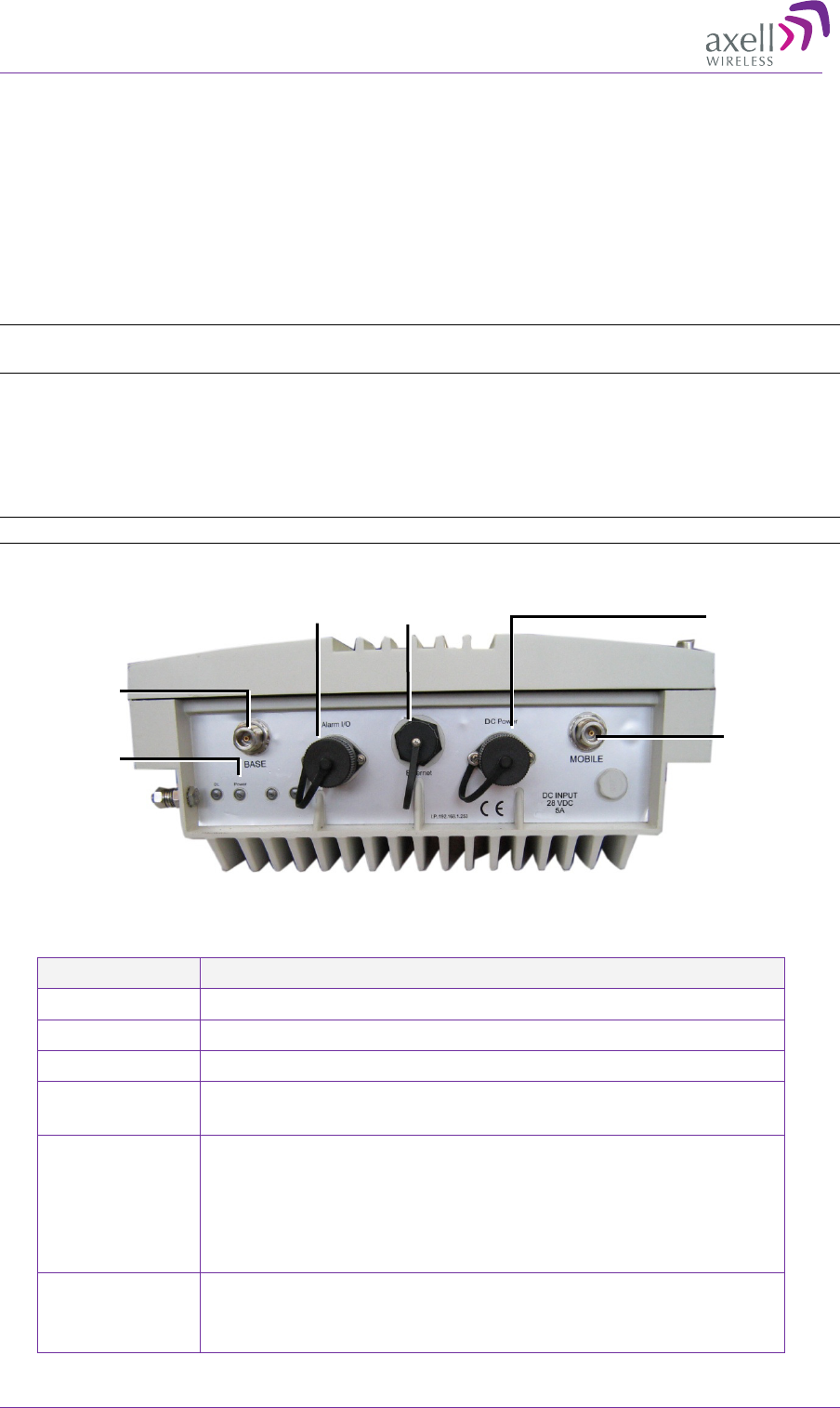

1-2. Axell D-MBR 3007-3008-PS NFPA Front Panel Interfaces
The following table provides a description of the front panel ports and connections.
Interface Description
Base Connection to Base (donor) side antenna
Mobile Connection to mobile (service) side antenna
Ethernet Connection to Ethernet devices.
Dry contact
NFPA alarms
See section 3.9 for description of alarm connections.
DC Power Model dependant:
• Power from system AC to DC converter mounted on the
wall mount bracket. Do not connect directly to any other
power supply!!!
• Power from system DC source.
LED - Steady Green – Normal operation
- Red or Orange - see section 6.1Error! Reference source
not found.
Service
antenna
connections
DC Power
Donor antenna
connections
DL and
Power LEDs
Ethernet
Dry contact
NFPA alarms
