4.3 Antenna Isolation

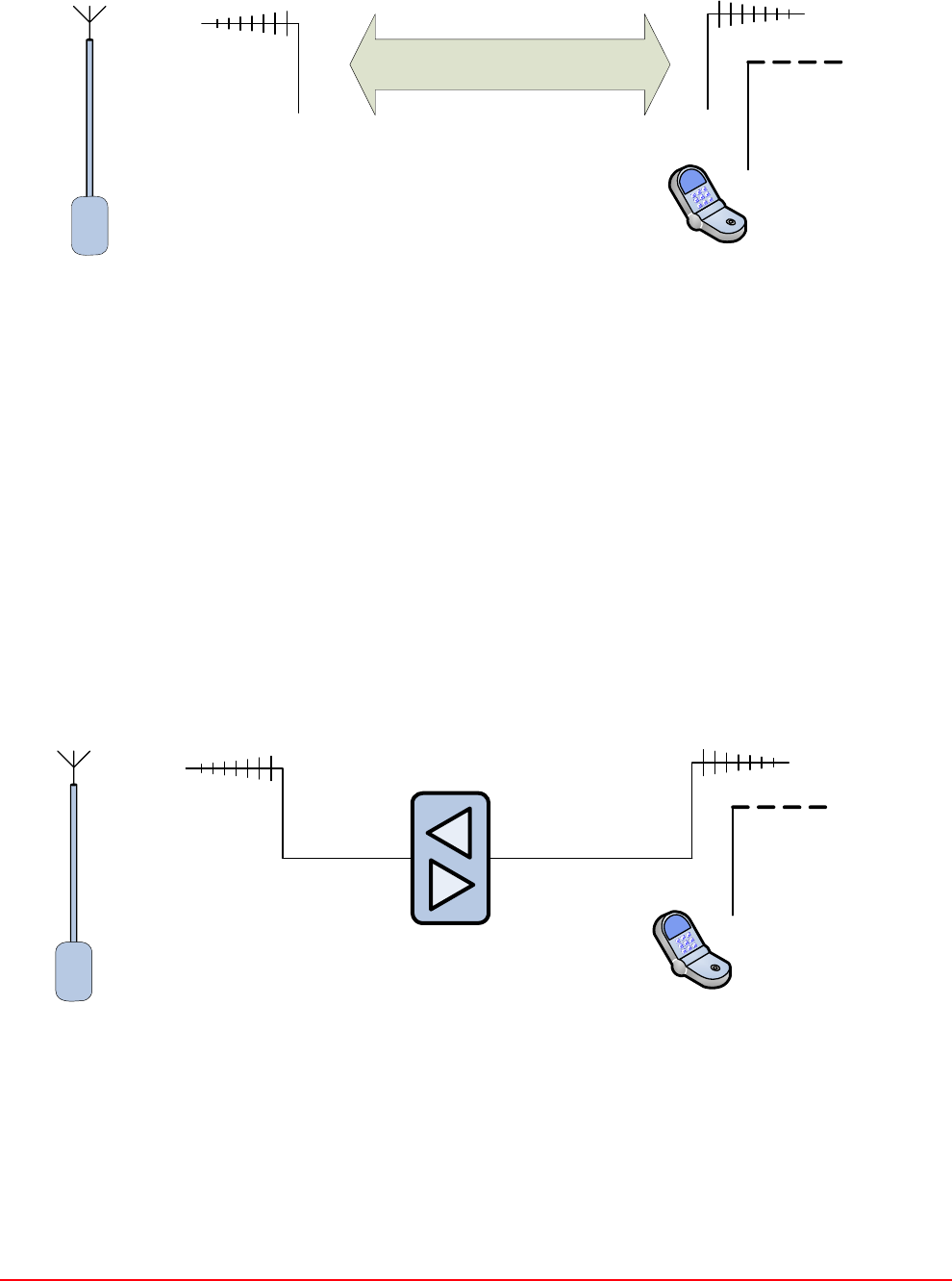

A). First set up the two antennas & measure the isolation between them.
Yagi
Yagi or leaky feeder
Mobiles
Measure Isolation
between antennas
Base site (donor)
B). Install the Cell Enhancer with its gain set 10dB below the isolation figure obtained above.
Yagi
Yagi or leaky feeder
Mobiles
B
Mobile portBase port
Cell Enhancer
ase site (donor)
