30 2 WAY POWER SPLITTER 70/30 (05-009905)
The power Splitter is a device for accurately matching two or more RF signals to single or multiple
ports, whilst maintaining an accurate 50Ω load to all inputs/outputs and ensuring that the VSWR,
return and insertion losses are kept to a minimum. Any unused ports should be terminated with an
appropriate 50Ω load. Power devices such as these, typically give 10dB better output isolation than
low power equivalents – (important for splitters that feed antenna systems).
2 way power splitter 05-009905
Specification Parameter
Frequency Range 764 – 860MHz
Impedence 50Ω
Insertion Loss ≤ ± 0.3dB
VSWR 1.25:1
Splitter 100Watts Maximum
input power
Combiner 5Watts
Power splitting/combining ratio 70% - 30%
RF Connectors N Female
Dimensions 104mm x 63mm x 46mm
operation -20°C to +60°C Temperature
range
storage -40°C to +70°C

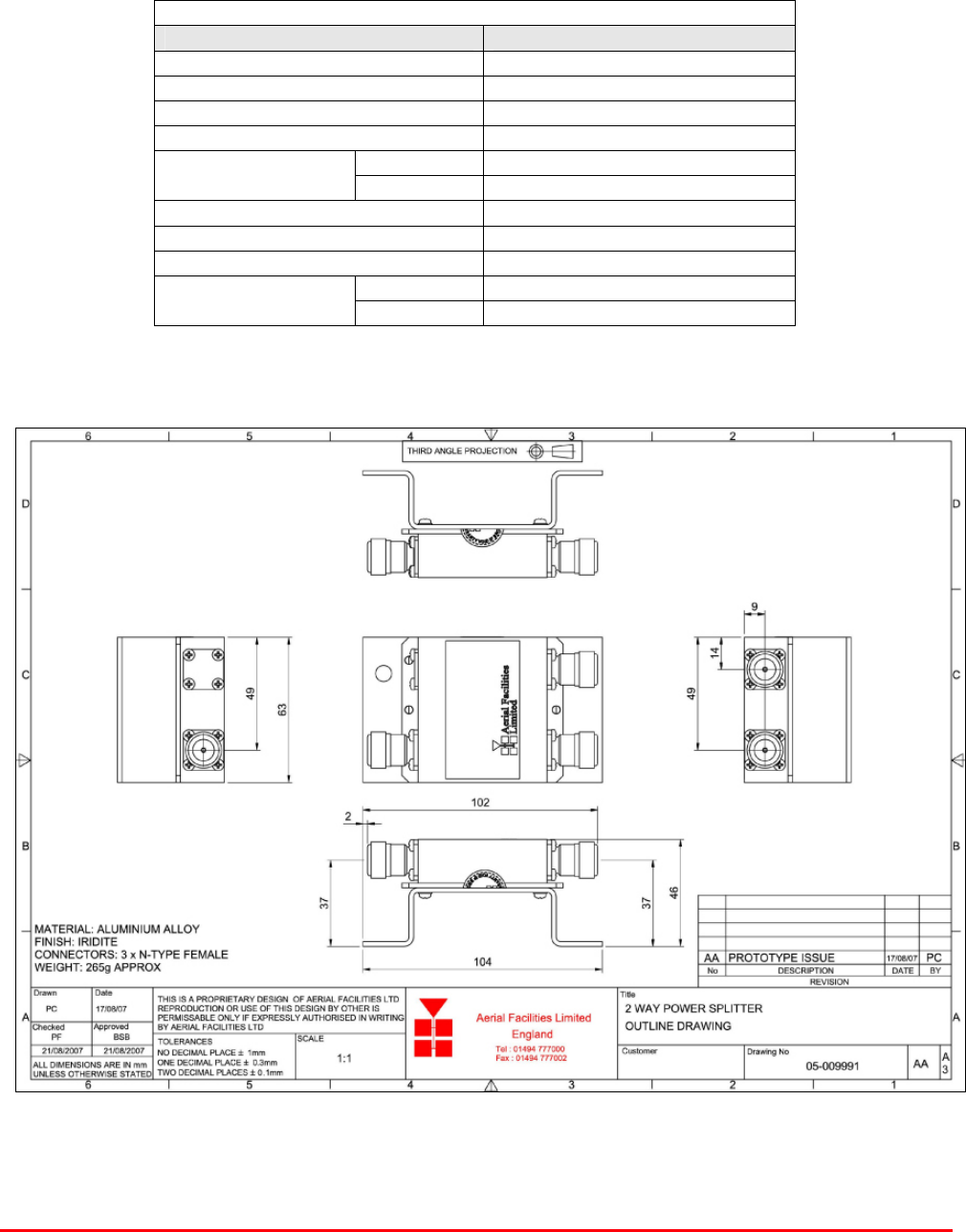

2 WAY POWER SPLITTER 70/30 (05-009905) Outline Drawing
Drawing number 05-009991
