User Manual

AXELL CSR 3604-3304 UHF REPEATER

PRODUCT DESCRIPTION AND USER’S MANUAL

4.5.3 Hanging the Repeater on the Wall

1. Align repeater with the four fixings. Exercise great care as the repeater is very heavy (a

suitably rated heavy duty scissor lift table/trolley may be suitable for this operation).

2. Carefully insert the fixing bolts through the mounting lugs of the Repeater and into the

sleeve/anchor sections of the fixing in the wall and tighten the bolts.

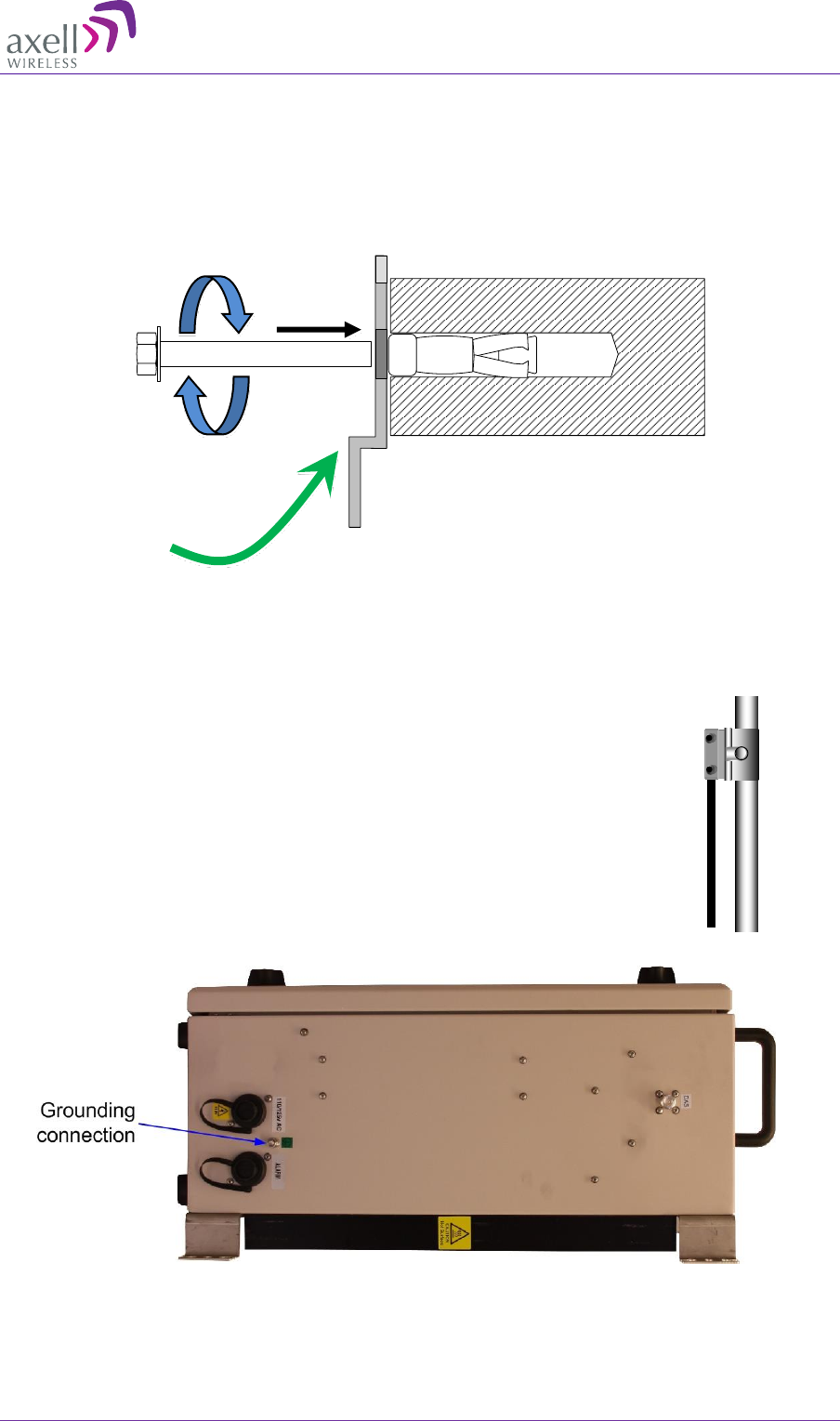

Figure 4-6. Mount Repeater.

4.6 Grounding

1. GND the repeater grounding bolt.

2. Ensure that good grounding protection measures are taken

to create a reliable repeater site.

3. Make sure to use adequately dimensioned grounding

cables. The minimum recommended conductive area for a

grounding cable is 16mm2.

Figure 4-7. Grounding

Align Repeater

and Secure Bolts
