User Manual

AXELL CSR 3604-3304 UHF REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
4 DOC PN 3633B-UM Rev. 2.1 © Axell Wireless Ltd
1.3.1.2 External Interfaces
The repeater is secured with two locks located on the repeater door. The repeater interfaces
are located on both the left and right side panels as follows:
 Left panel – Base/Donor antenna port
 Right panel – Mobile/Service antenna port as well as power, GND, and alarm
connections
NOTE: Depending on your installation, modem antenna and Ethernet ports may also be located on
either the left or right panel.

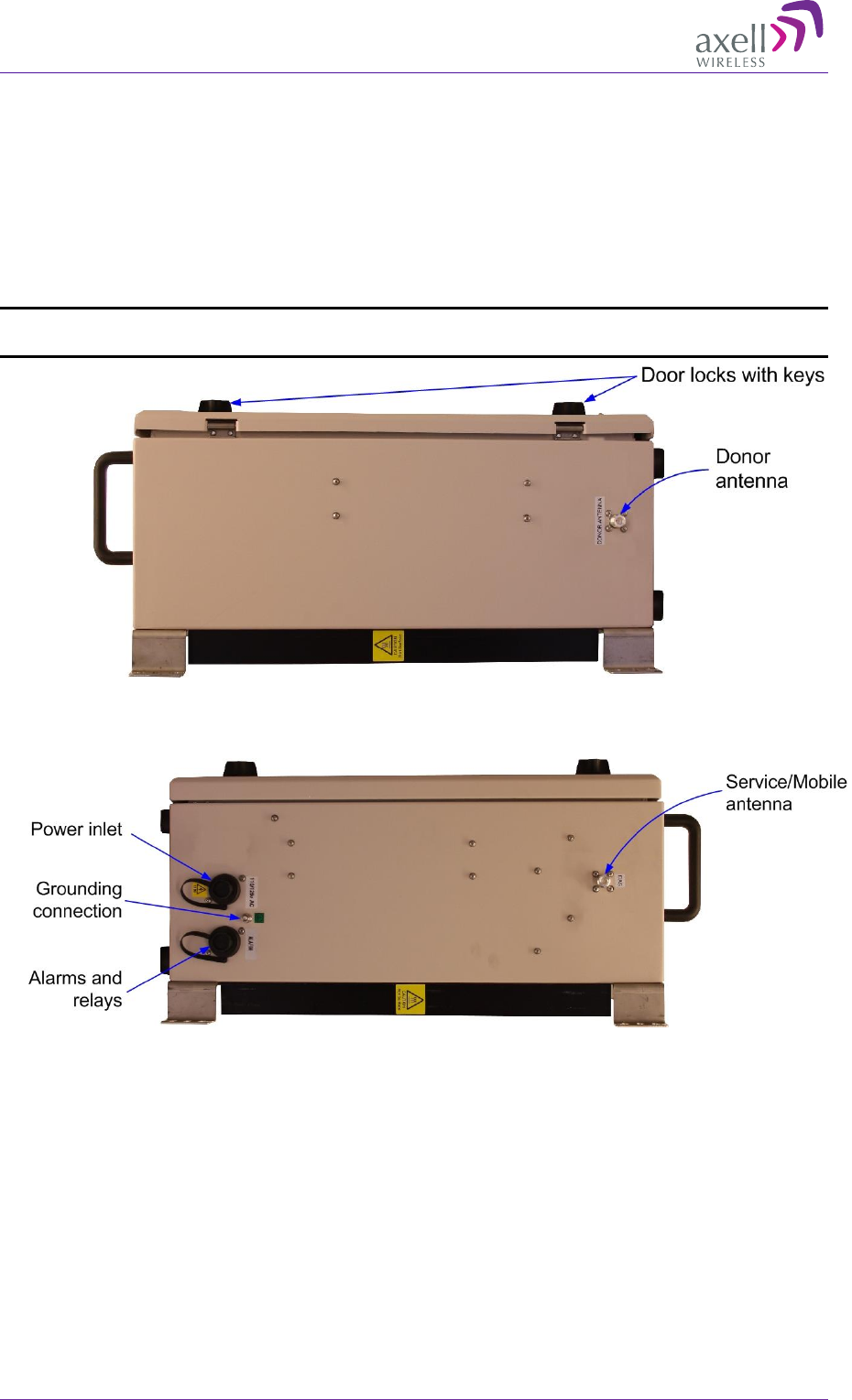

Figure 1-3. CSR Door Locks and Left Side Panel Interfaces
Figure 1-4. CSR right side panel interfaces
