User Manual

AXELL CSR 3604-3304 UHF REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
© Axell Wireless Ltd DOC PN 3633B-UM Rev. 2.1 1
1 Introduction
The Axell CSR 3604-3304 (Channel Selective Repeater) is a repeater operating in the UHF
bands of 450MHz to 510MHz. Channel selective repeaters are mainly used for in-building
coverage, as well as coverage of dead zones, shadows, or other uncovered patches within
the current coverage area. The gap-filler repeaters can be used as a complement to the
network of base stations. They acquire their signal over-the-air from the Base Station and
transmit over the designated coverage area via service antennas.
A range of CSR repeater models are available for various site coverage requirements. This
manual describes the installation procedure for the US market.

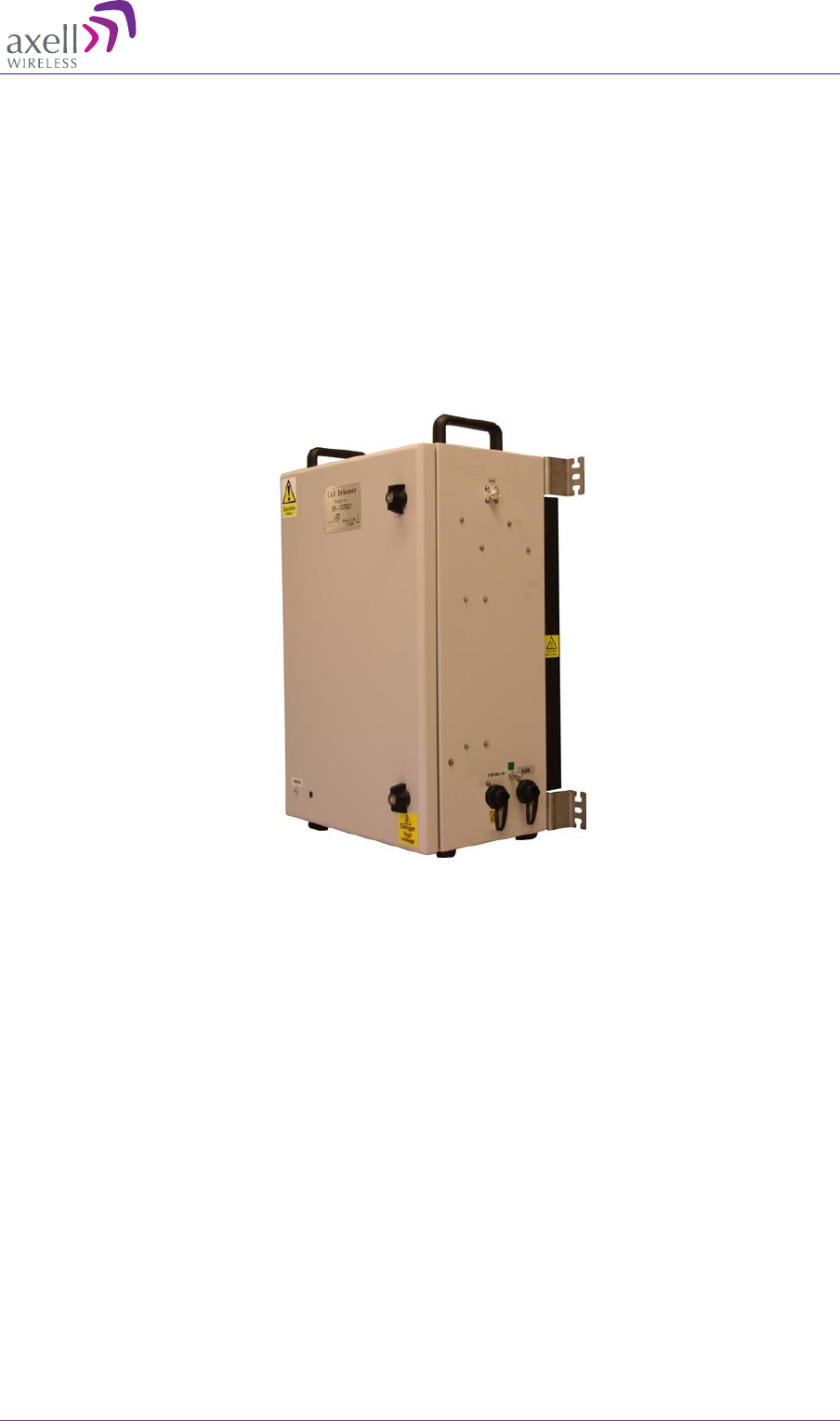

Figure 1-1. CSR 3604-3304 Repeater Model
